5V1200

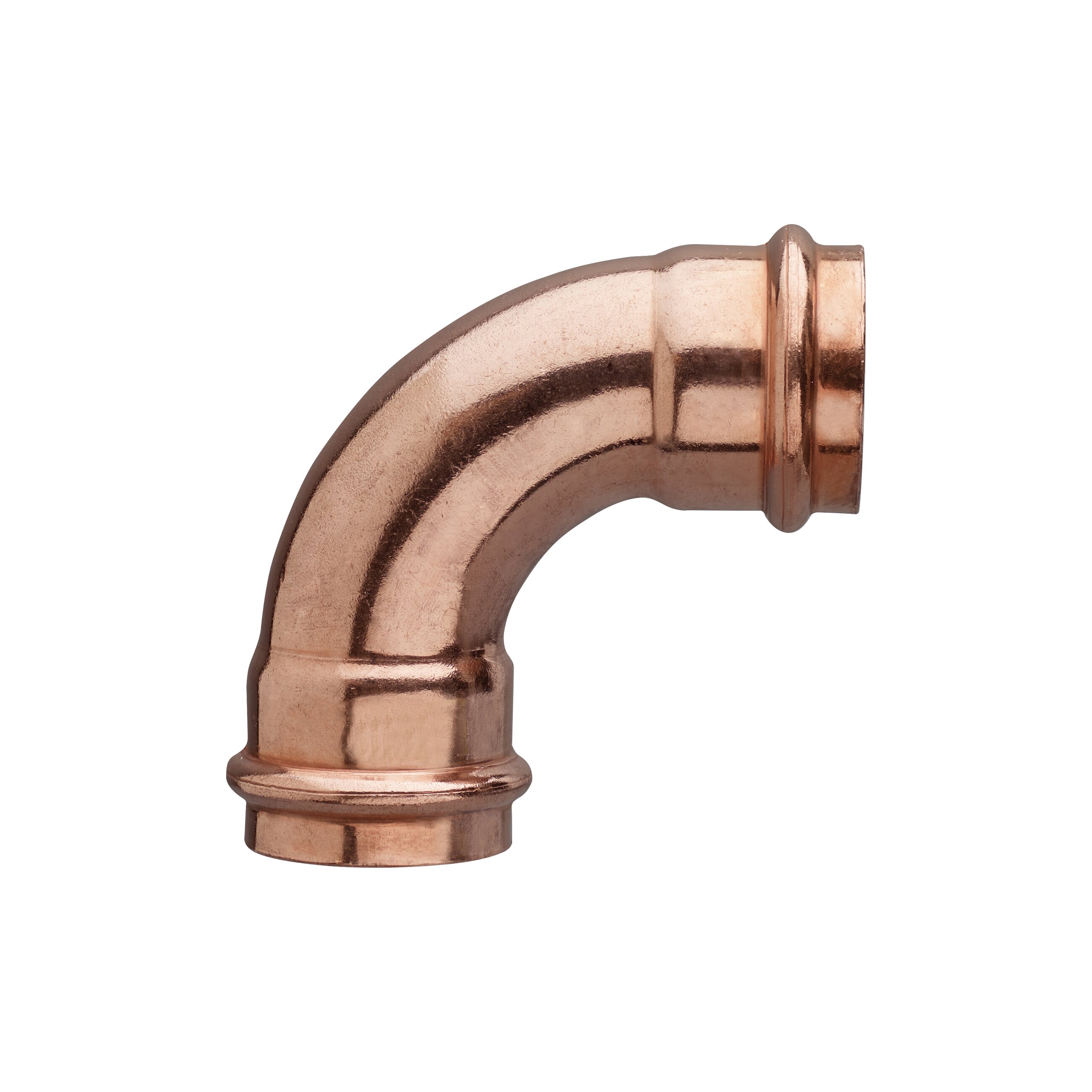

Copper F/F 90° elbow.

Technical specifications

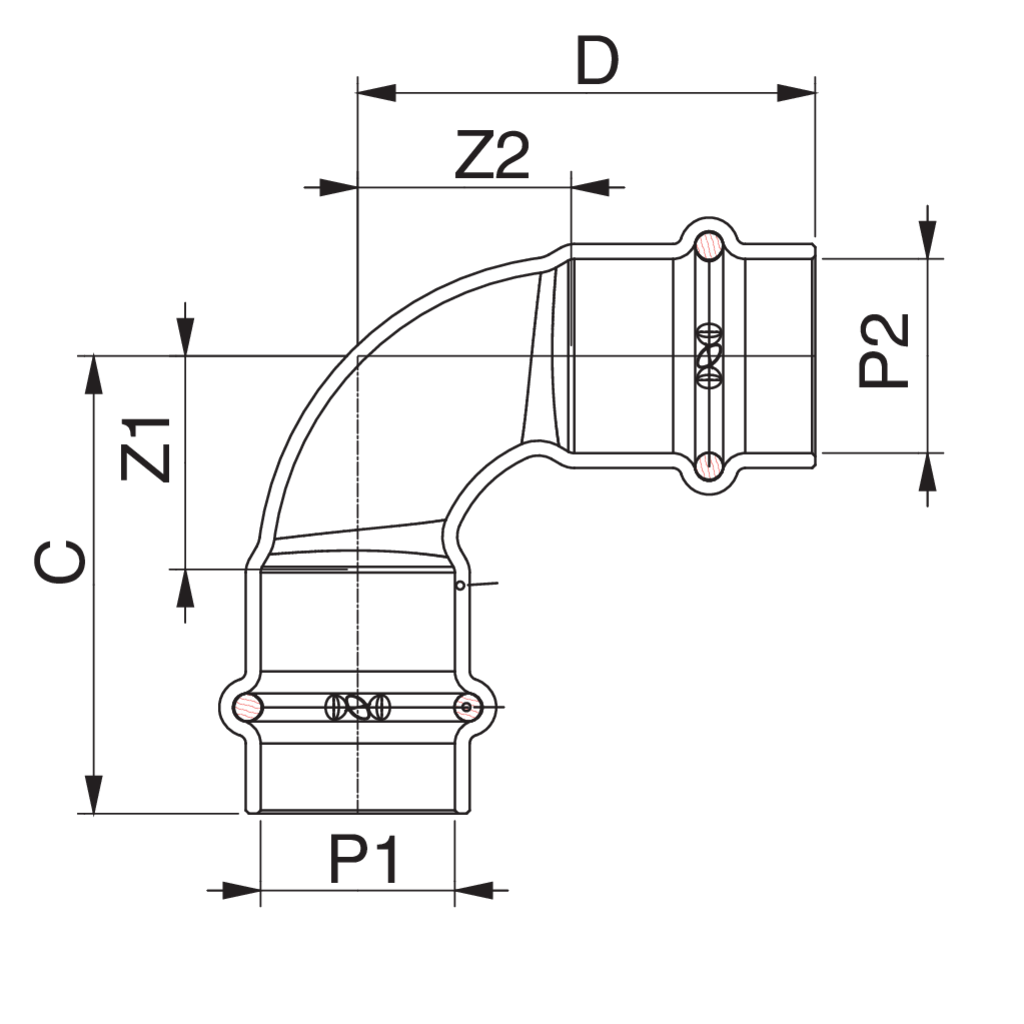

P1 x P2	BAG	MASTER BOX	PART NO.	Z1	C	Z2	D
1/2'' x 1/2''	10	250	5V120004	0.63	1.38	0.63	1.38
1'' x 1''	5	90	5V120006	0.99	1.90	0.99	1.90
1 1/4'' x 1 1/4''	5	65	5V120007	1.28	2.30	1.28	2.30
1 1/2'' x 1 1/2''	1	20	5V120008	1.43	2.83	1.42	2.83
2'' x 2''	1	12	5V120010	2.01	3.58	2.01	3.58
3/4'' x 3/4''	10	120	5V120005	0.76	1.66	0.76	1.65
