5V1200

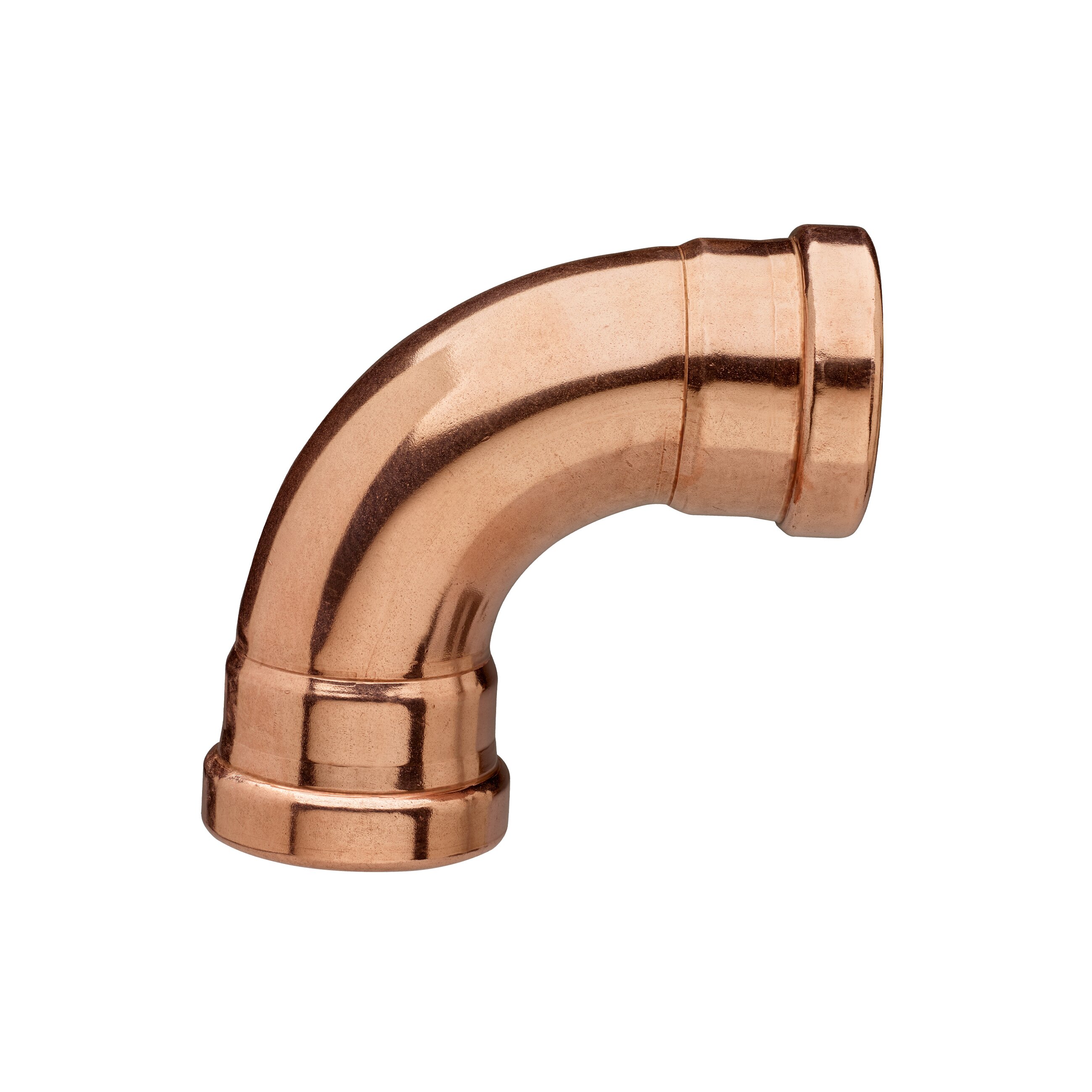

Copper F/F 90° elbow.

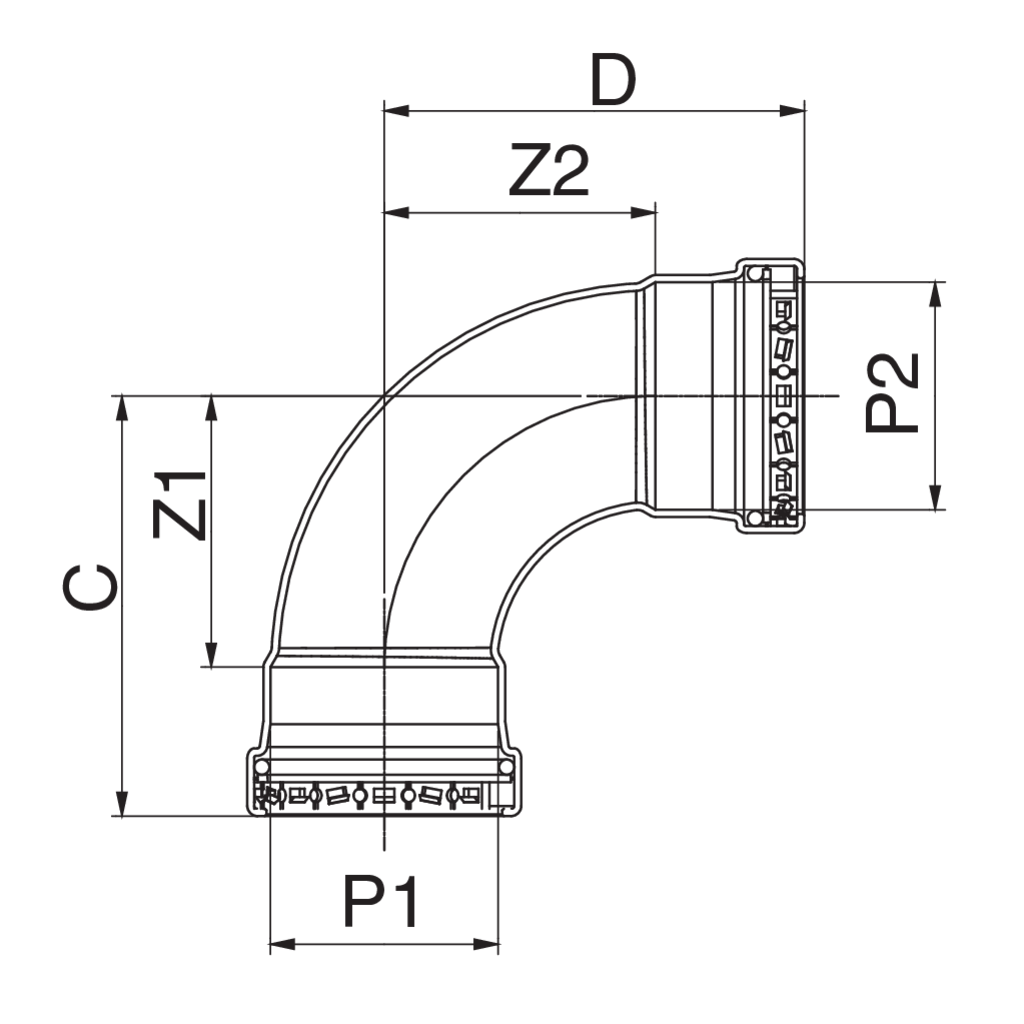

Technical specifications

P1 x P2	BAG	MASTER BOX	PART NO.	Z1	C	Z2	D
2 1/2'' x 2 1/2''	1	8	5V120012	3.15	4.88	3.15	4.88
3'' x 3''	1	3	5V120014	3.74	5.71	3.74	5.71
4'' x 4''	1	2	5V120018	4.84	7.24	4.84	7.24

Available media and videos

BIM

5V1200-5V1400_Copper.zip
