5V1300

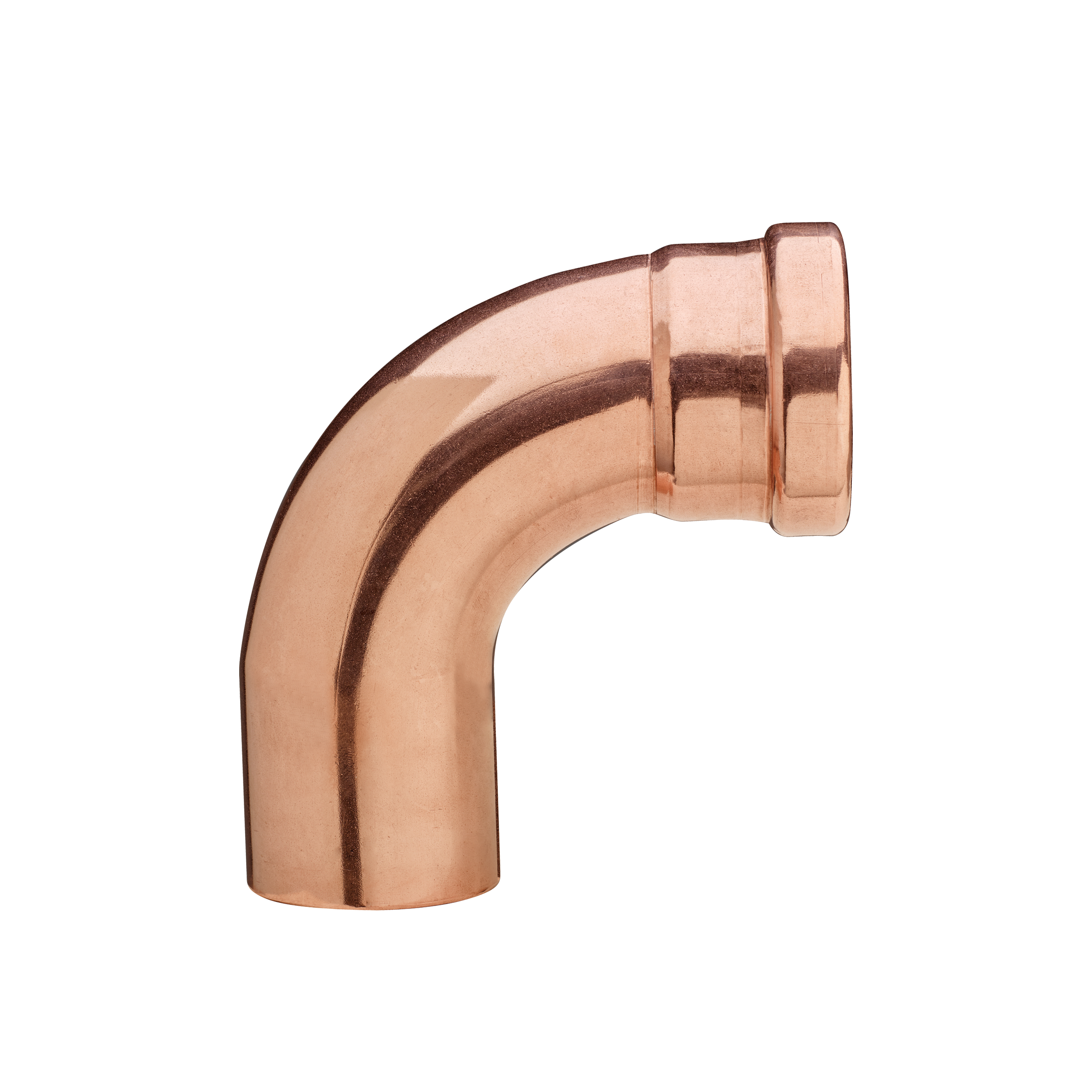

Copper M/F 90° elbow.

Technical specifications

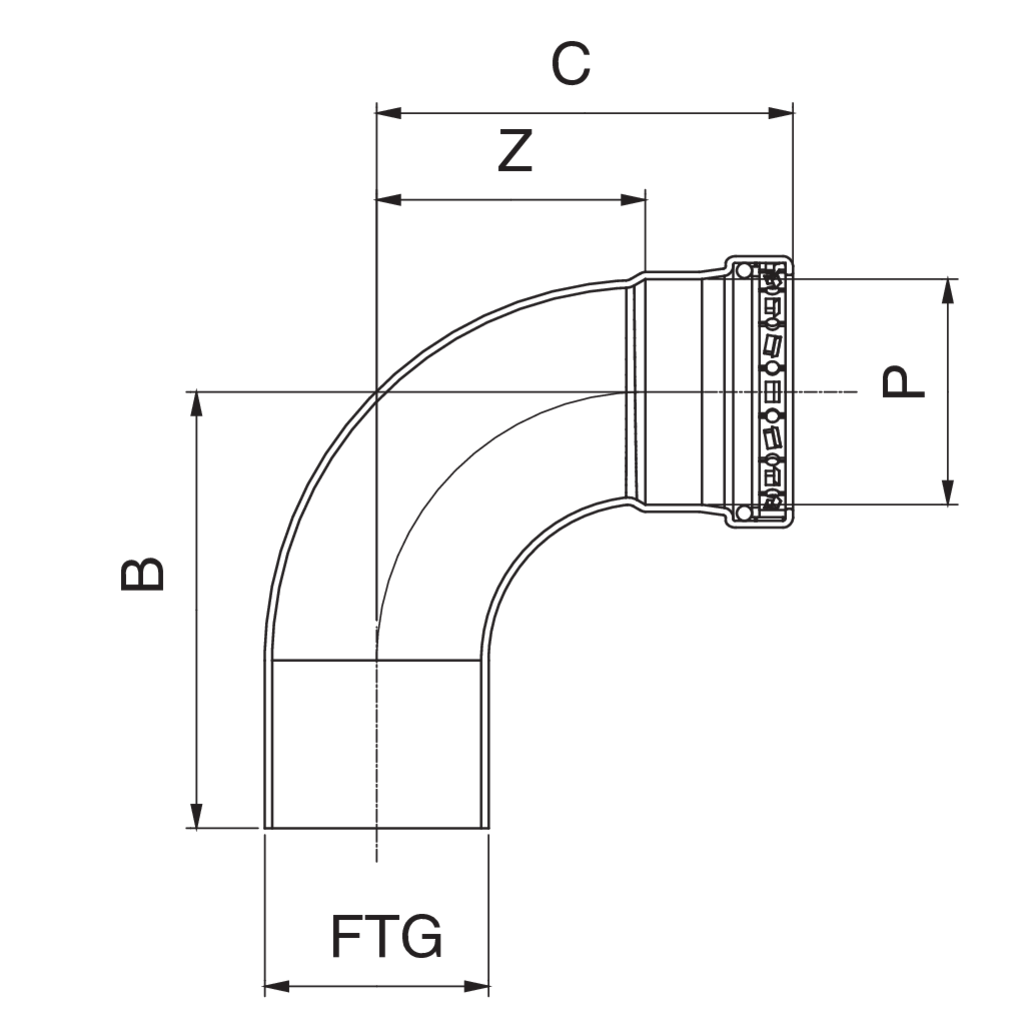

FTG x P	BAG	MASTER BOX	PART NO.	B	Z	C
2 1/2'' x 2 1/2''	1	6	5V130012	5.12	3.15	4.88
3'' x 3''	1	5	5V130014	6.02	3.74	5.71
4'' x 4''	1	2	5V130018	7.52	4.96	7.36

Available media and videos

BIM

5V1300-5V1500_Copper.zip
