5V1400

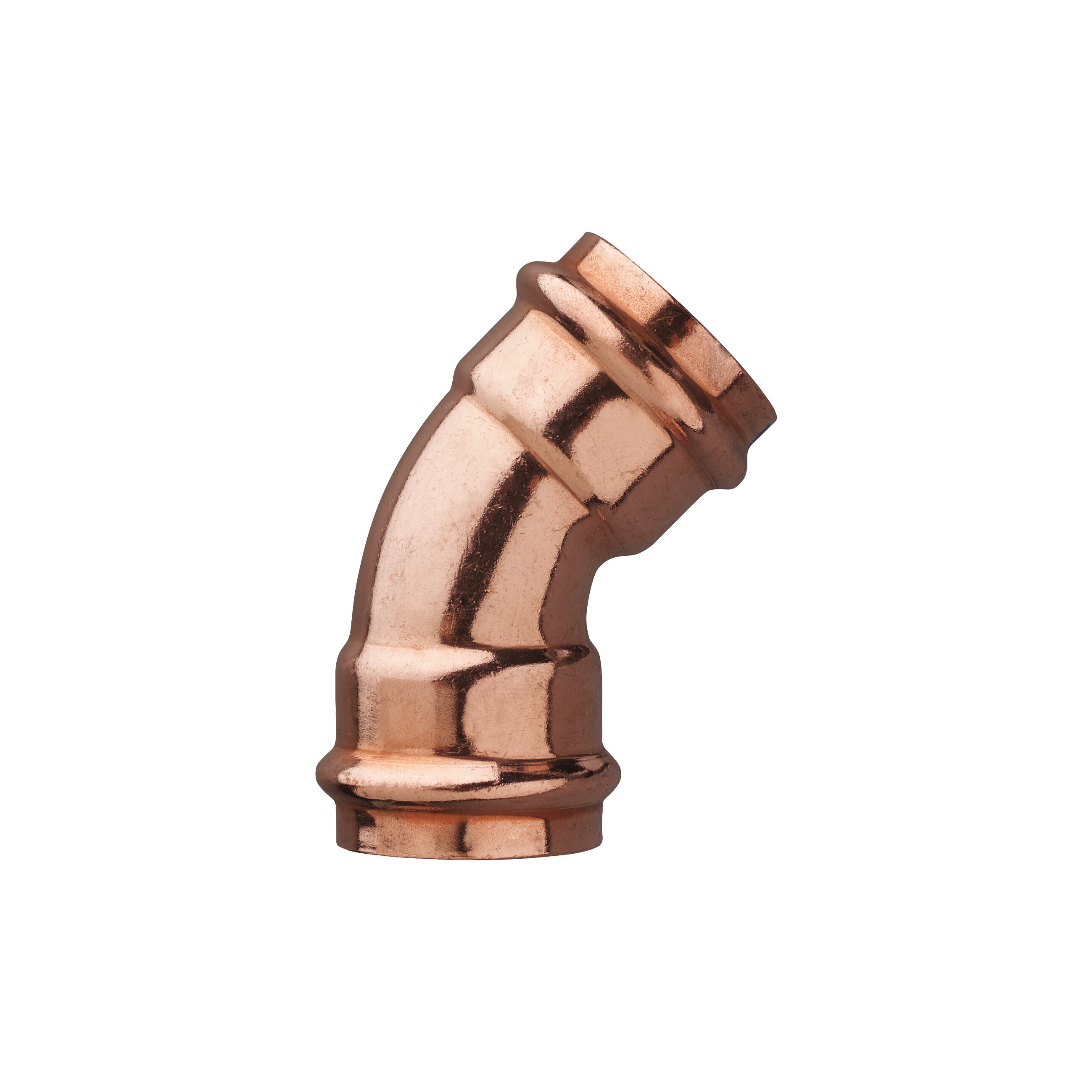

Copper F/F 45° elbow.

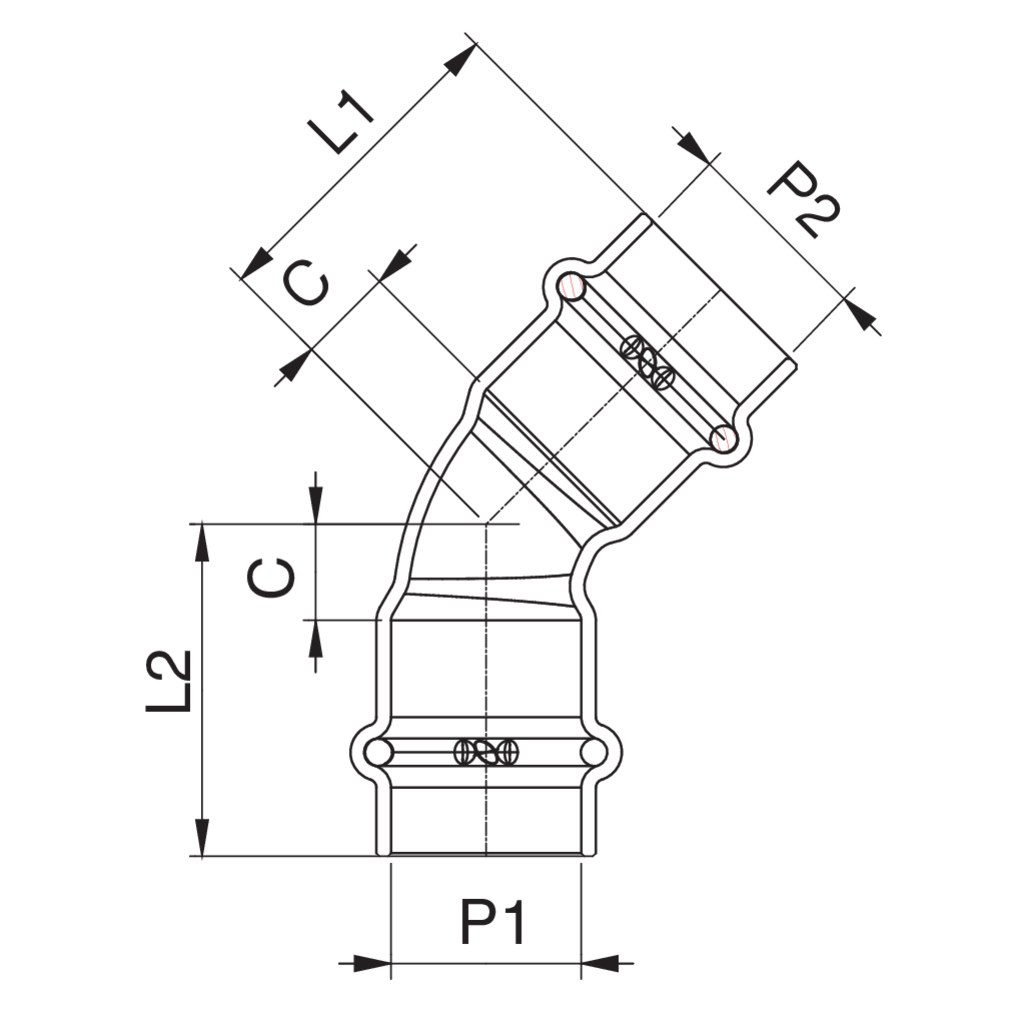

Technical specifications

P1 x P2	BAG	MASTER BOX	PART NO.	C	L1	L2
1/2'' x 1/2''	10	250	5V140004	0.31	1.06	1.06
1'' x 1''	5	60	5V140006	0.46	1.36	1.36
1 1/4'' x 1 1/4''	5	50	5V140007	0.57	1.59	1.59
1 1/2'' x 1 1/2''	1	24	5V140008	0.67	2.09	2.09
2'' x 2''	1	16	5V140010	0.88	2.46	2.46
3/4'' x 3/4''	10	120	5V140005	0.36	1.26	1.26
