5V1400

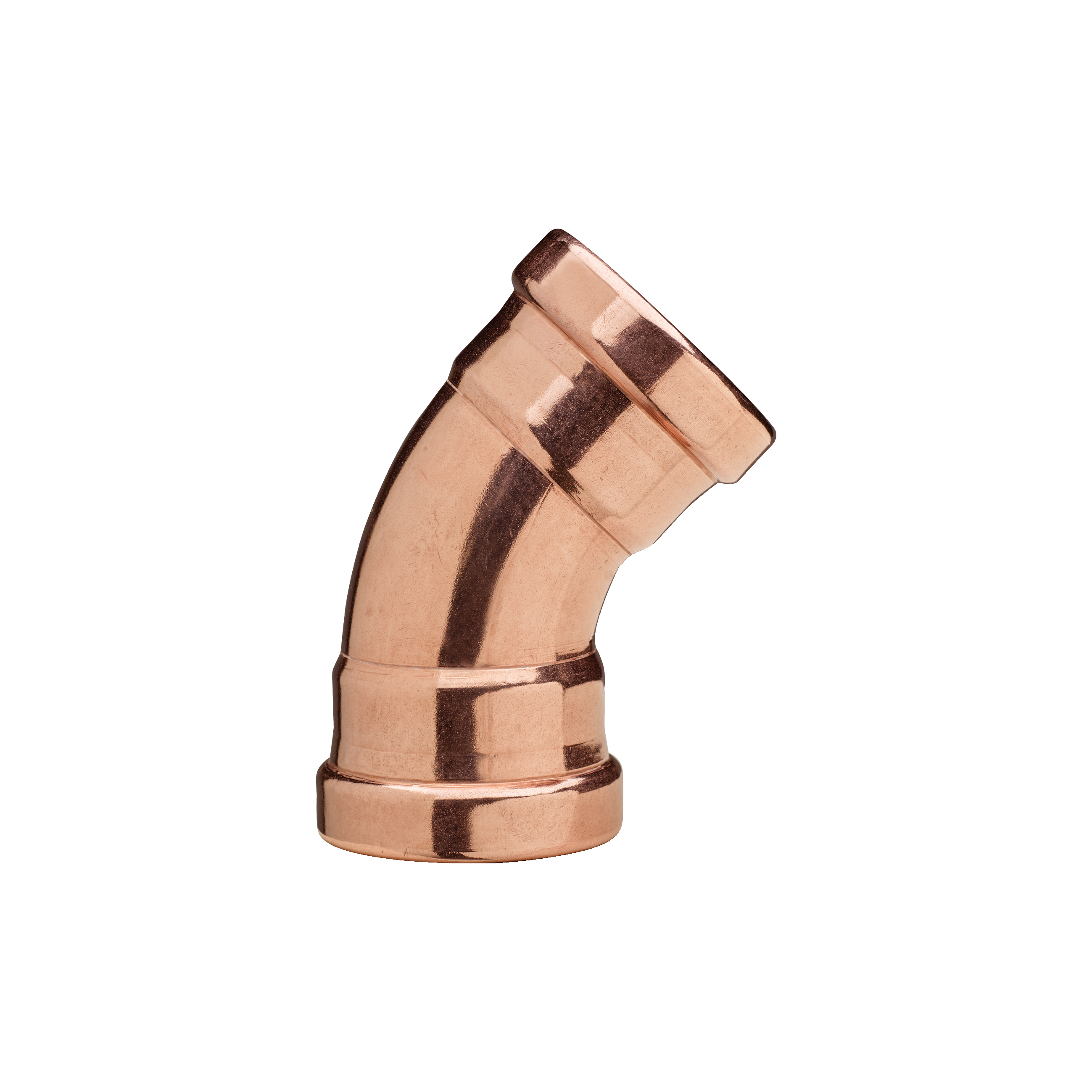

Copper F/F 45° elbow.

Technical specifications

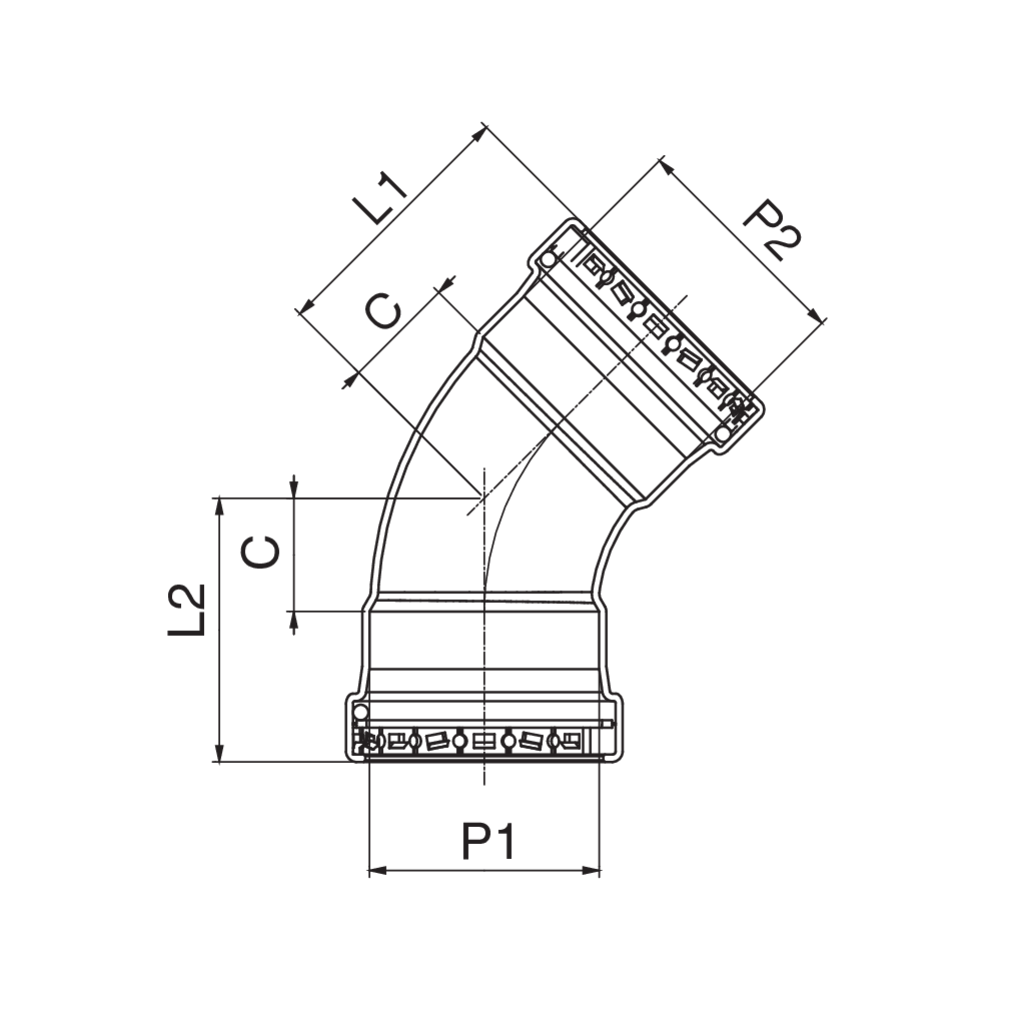

P1 x P2	BAG	MASTER BOX	PART NO.	C	L1	L2
2 1/2'' x 2 1/2''	1	8	5V140012	1.30	3.03	3.03
3'' x 3''	1	5	5V140014	1.57	3.54	3.54
4'' x 4''	1	3	5V140018	2.05	4.45	4.45

Available media and videos

BIM

5V1200-5V1400_Copper.zip
