5V2000

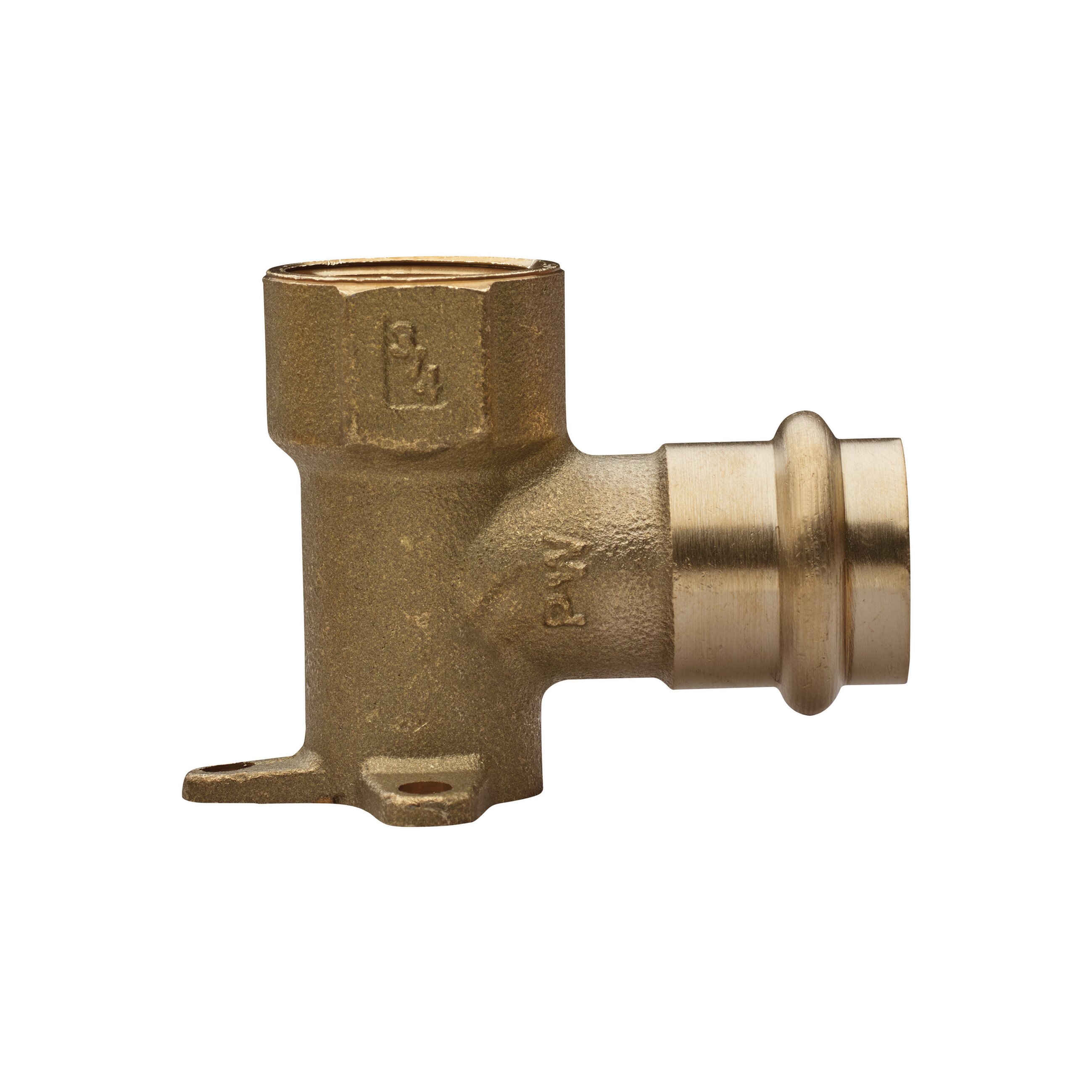

Brass F/female thread 90° elbow with wallplate.

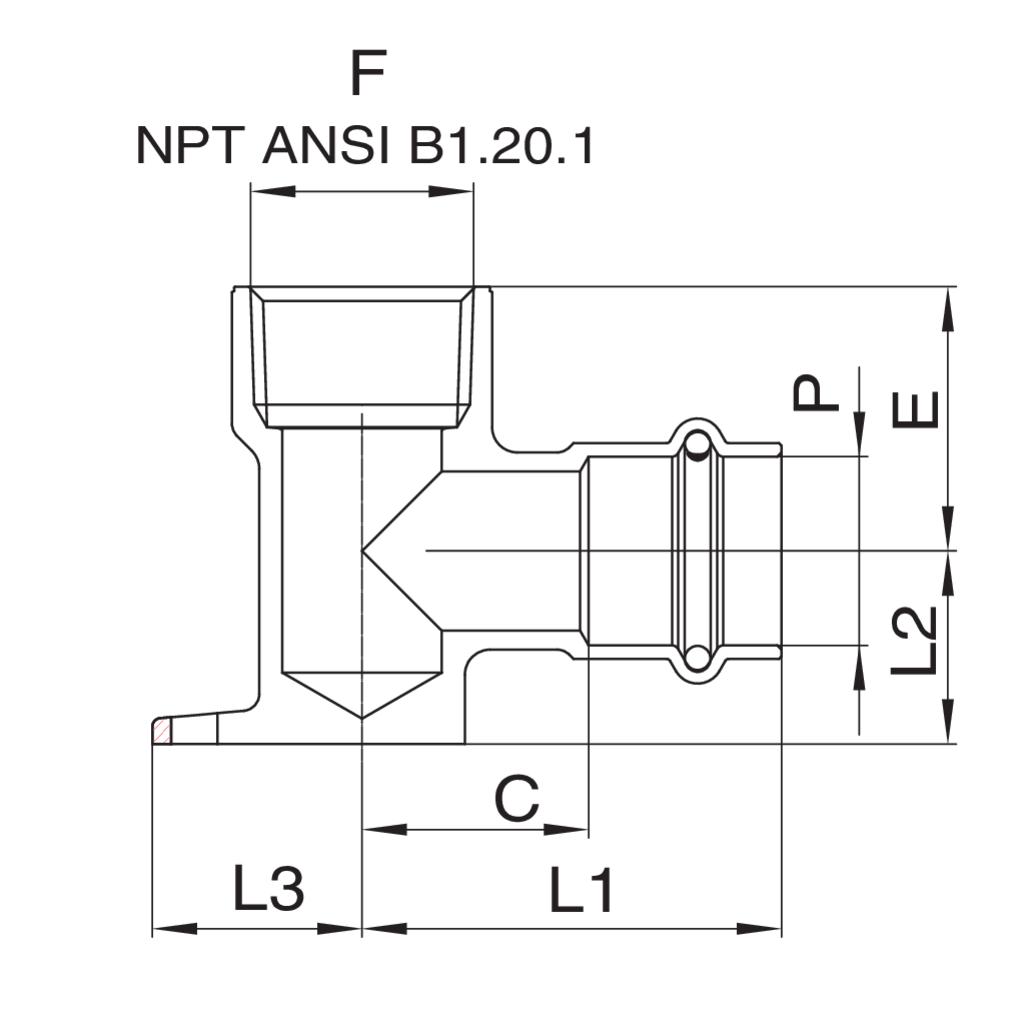

Technical specifications

P x F	BAG	MASTER BOX	PART NO.	L1	E	L2	L3	C
1/2'' x 1/2''	5	100	5V20000404	1.57	1.00	0.79	0.98	0.87
3/4'' x 3/4''	5	80	5V20000505	1.97	1.24	0.91	0.98	1.06

Available media and videos

BIM

5V2000_Brass.zip
