5V3100

Made in Italy

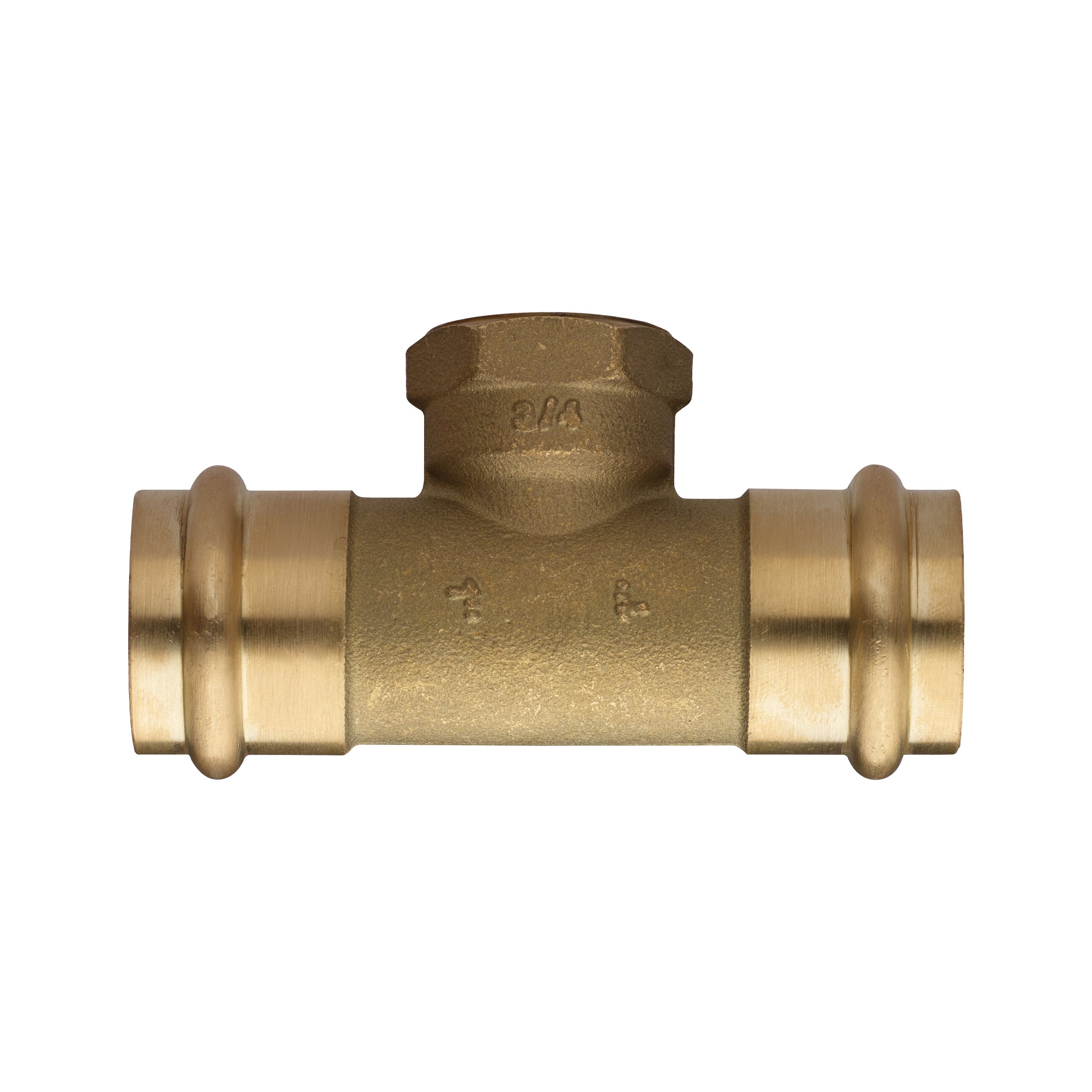

Brass F/female thread/F tee.

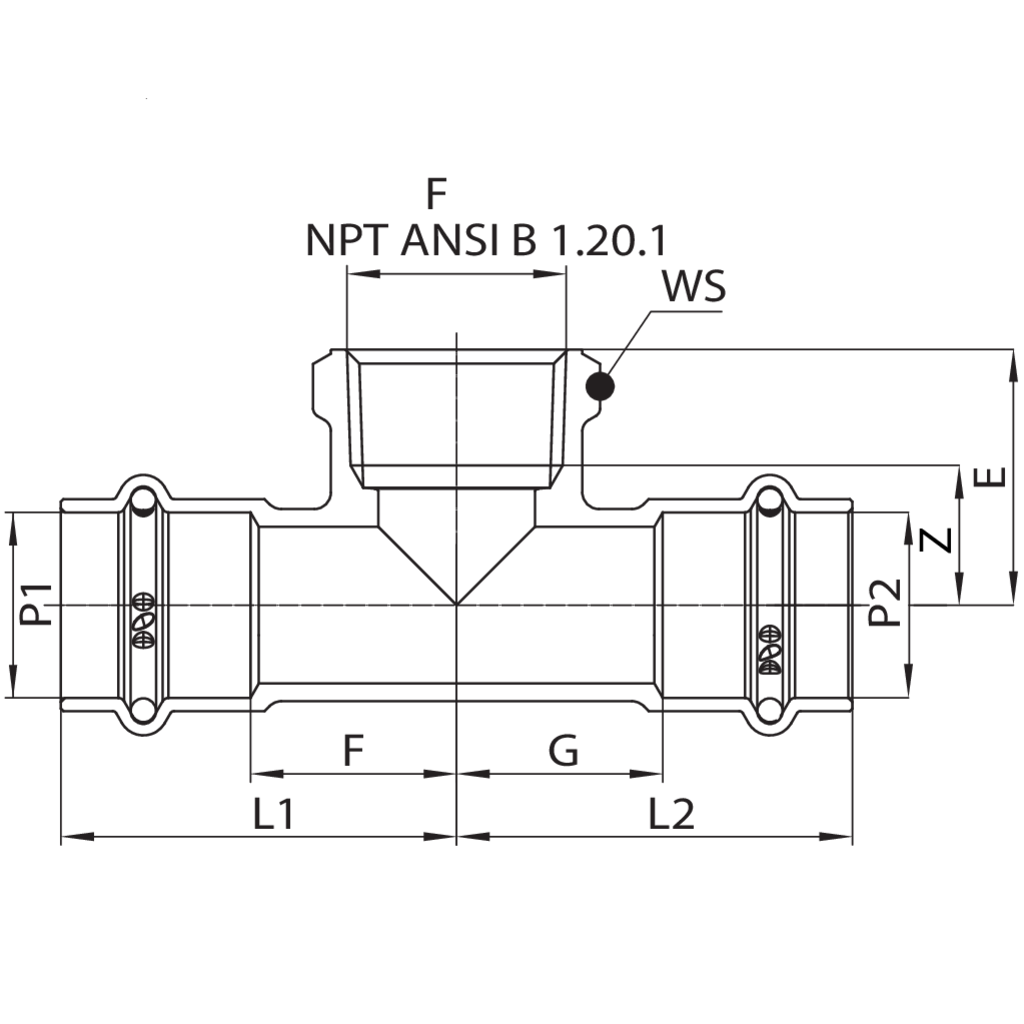

Technical specifications

P1 x P2 x F	BAG	MASTER BOX	PART NO.	L1	L2	G	E	Z	WS
1/2'' x 1/2'' x 1/2''	5	150	5V3100040404	1.57	1.57	0.87	1.12	0.59	1.02
1'' x 1'' x 1/2''	5	60	5V3100060604	1.83	1.83	0.89	1.36	0.83	1.02
1'' x 1'' x 3/4''	5	60	5V3100060605	1.97	1.97	1.02	1.40	0.85	1.22
3/4'' x 3/4'' x 1/2''	5	100	5V3100050504	1.76	1.76	0.86	1.20	0.65	1.02
3/4'' x 3/4'' x 3/4''	5	75	5V3100050505	1.89	1.89	0.98	1.22	0.67	1.22
