BONOMI PRESS

5V3200

Made in Italy

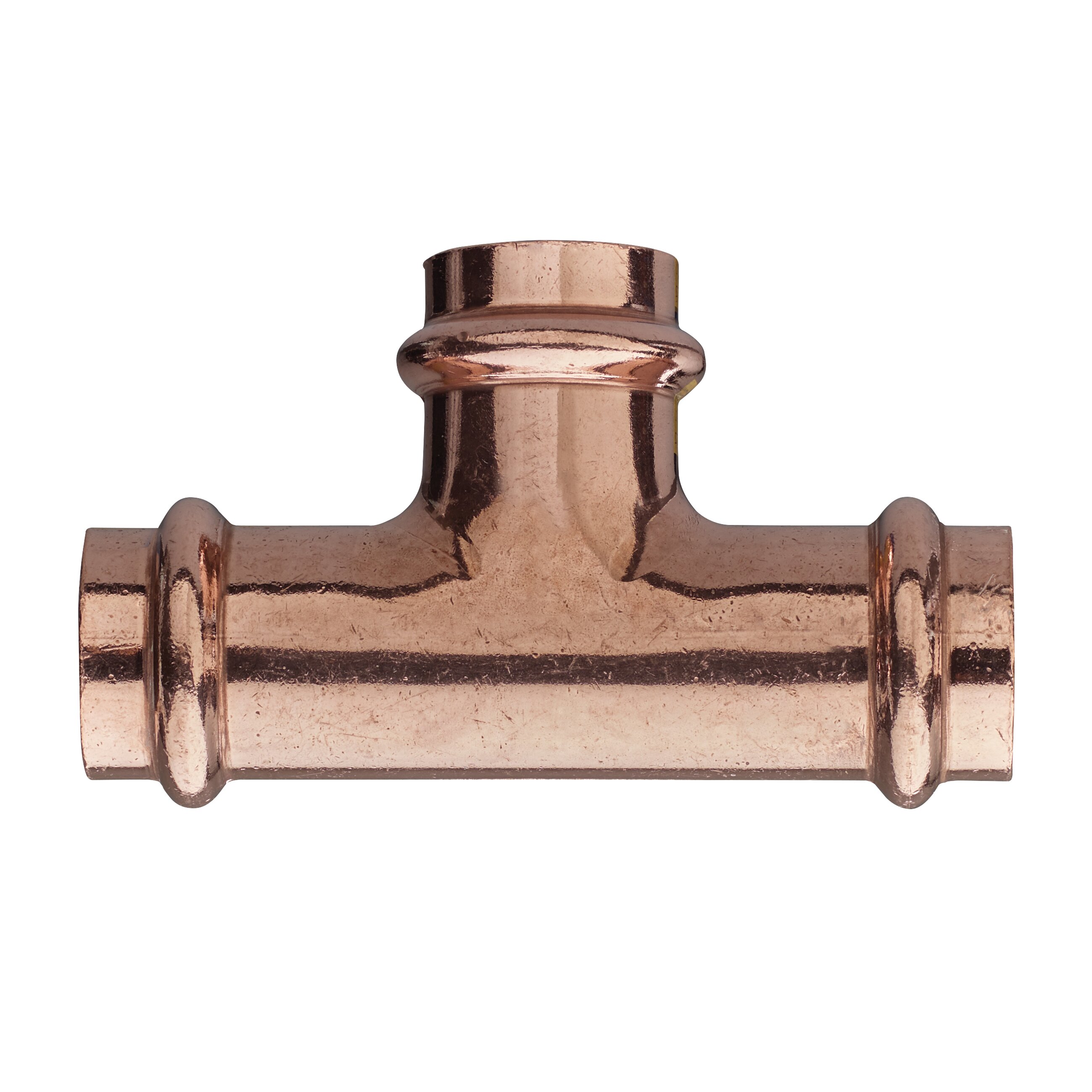

Copper F/F/F tee.

Technical specifications

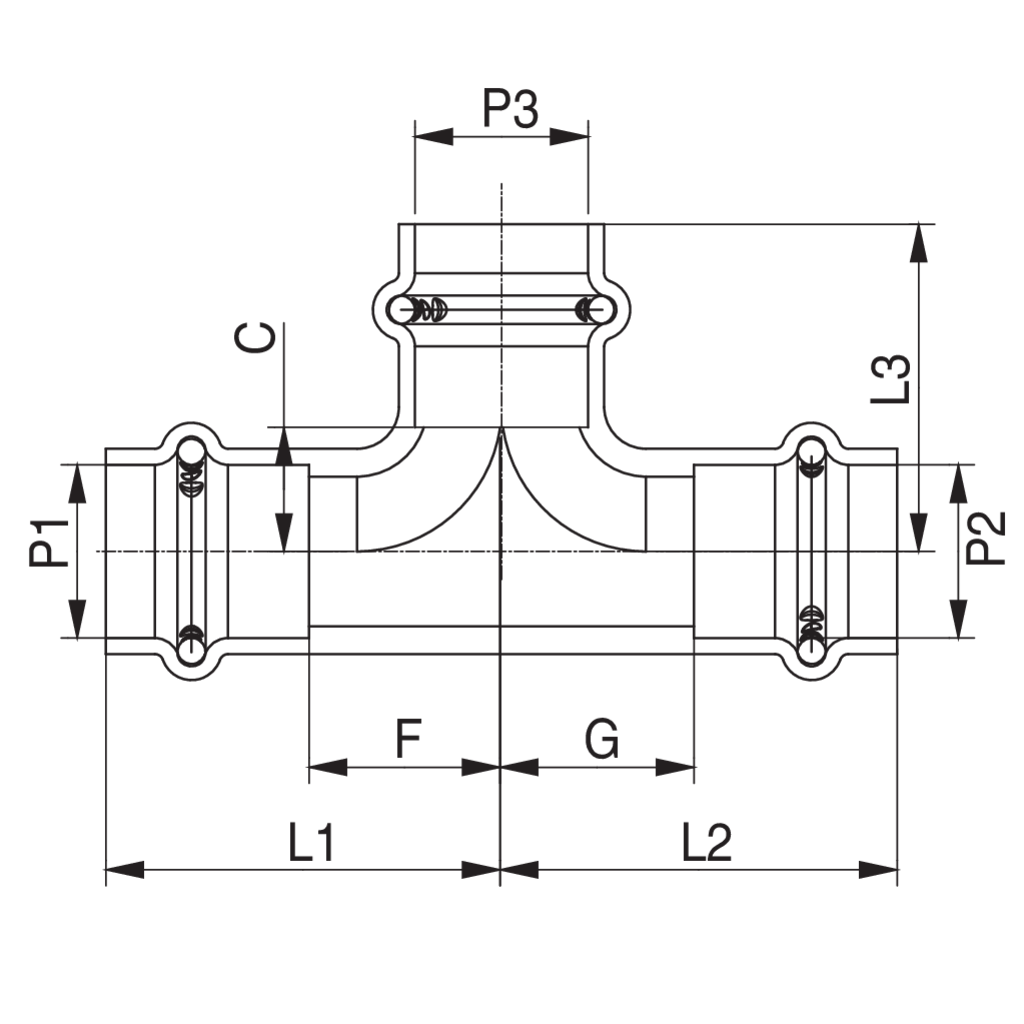

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
1/2'' x 1/2'' x 1/2''	10	150	5V320004	1.46	0.71	1.46	0.71	1.20	0.46
1'' x 1'' x 1''	5	50	5V320006	1.77	0.87	1.77	0.87	1.57	0.67
1 1/4'' x 1 1/4'' x 1 1/4''	1	30	5V320007	2.01	0.98	2.01	0.98	1.85	0.83
1 1/2'' x 1 1/2'' x 1 1/2''	1	22	5V320008	2.56	1.14	2.56	1.14	2.56	1.14
2'' x 2'' x 2''	1	10	5V320010	2.83	1.26	2.83	1.26	2.83	1.26
3/4'' x 3/4'' x 3/4''	5	90	5V320005	1.69	0.79	1.69	0.79	1.46	0.55
