BONOMI PRESS

5V3300

Made in Italy

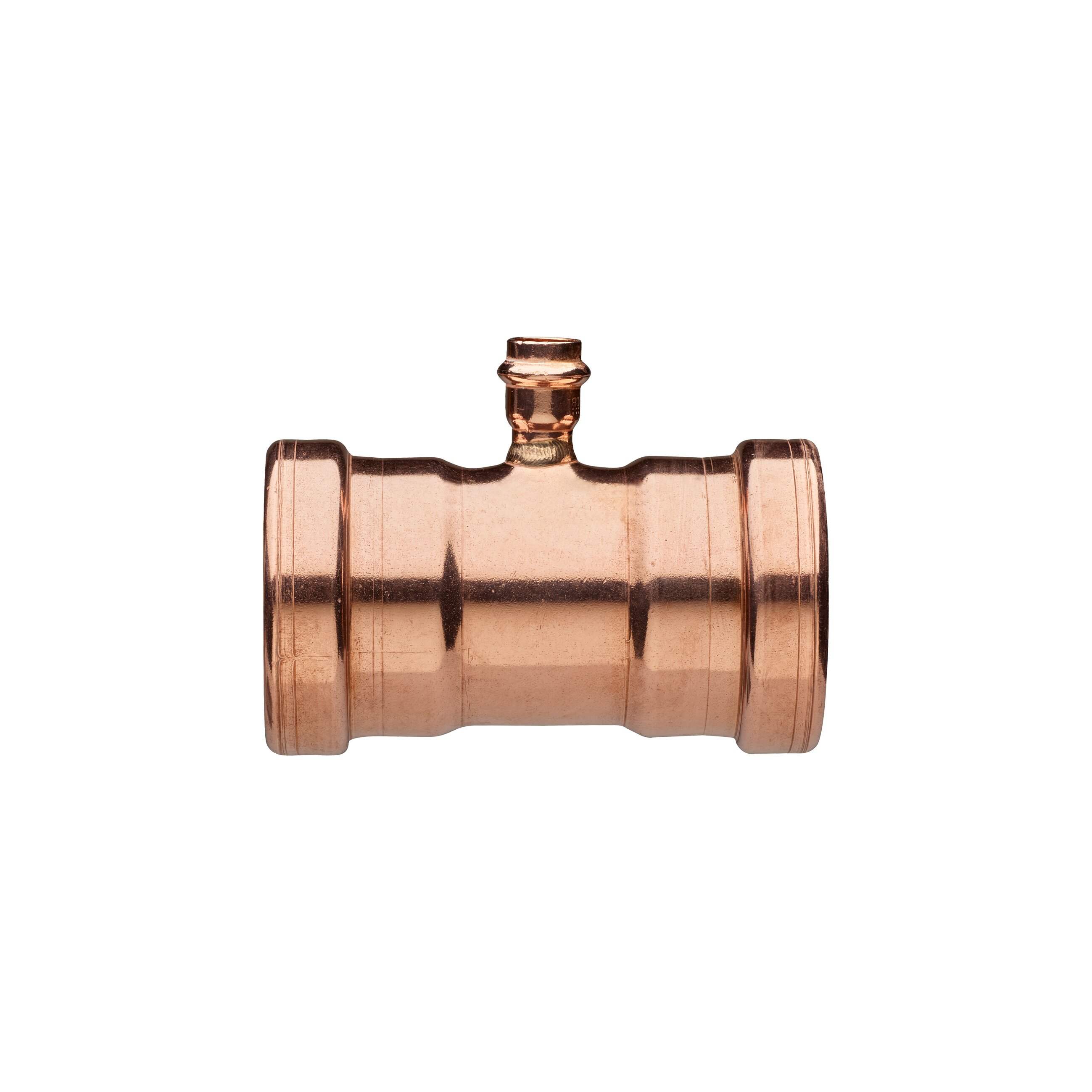

Copper F/F/F reducing tee.

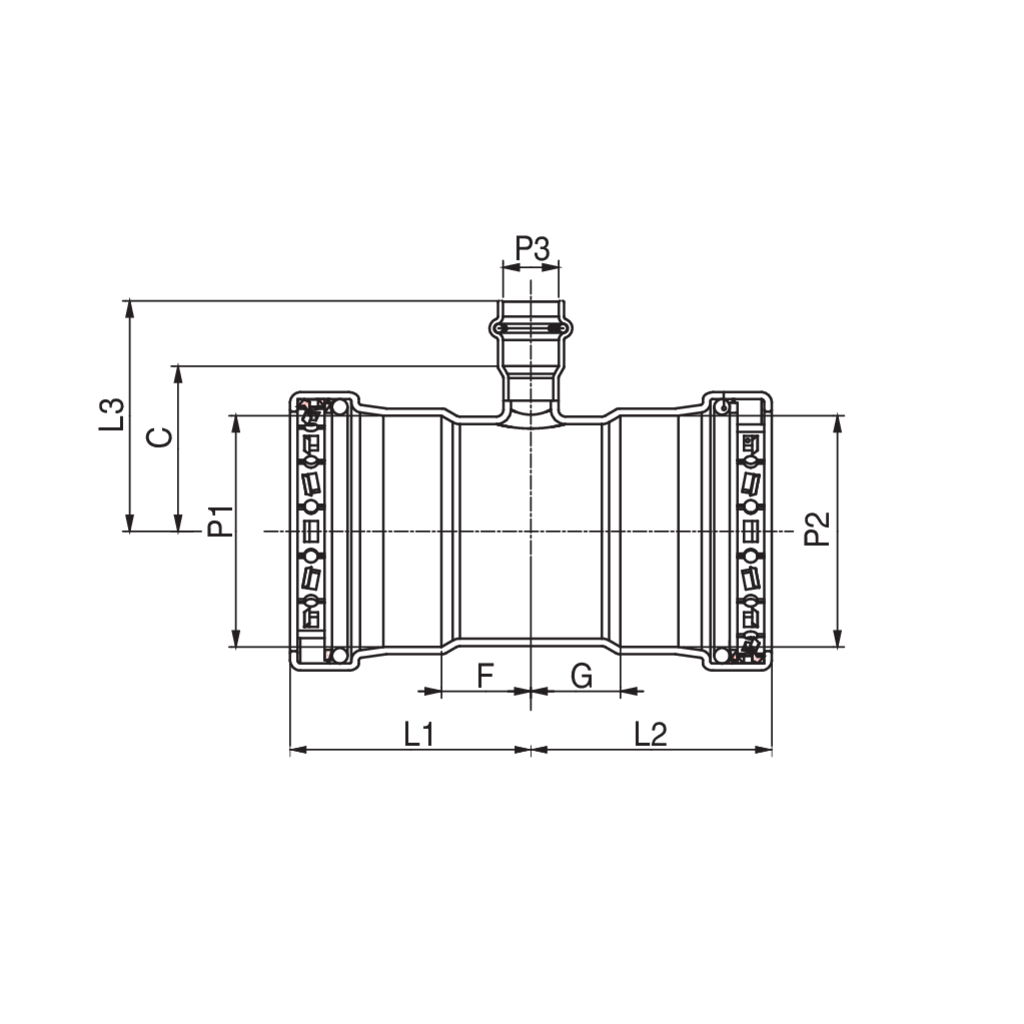

Technical specifications

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
2 1/2'' x 2 1/2'' x 1/2''	1	12	5V3300121204	2.76	1.02	2.76	1.02	2.64	1.89
2 1/2'' x 2 1/2'' x 1''	1	12	5V3300121206	2.76	1.02	2.76	1.02	2.80	1.89
2 1/2'' x 2 1/2'' x 1 1/4''	1	6	5V3300121207	3.23	1.50	3.23	1.50	2.91	1.89
2 1/2'' x 2 1/2'' x 1 1/2''	1	6	5V3300121208	3.23	1.50	3.23	1.50	3.31	1.89
2 1/2'' x 2 1/2'' x 2''	1	6	5V3300121210	3.23	1.50	3.23	1.50	3.46	1.89
2 1/2'' x 2 1/2'' x 3/4''	1	12	5V3300121205	2.76	1.02	2.76	1.02	2.80	1.89
3'' x 3'' x 1/2''	1	6	5V3300141404	3.03	1.06	3.03	1.06	2.87	2.13
3'' x 3'' x 1''	1	6	5V3300141406	3.03	1.06	3.03	1.06	3.03	2.13
3'' x 3'' x 1 1/4''	1	4	5V3300141407	3.54	1.57	3.54	1.57	3.15	2.13
3'' x 3'' x 1 1/2''	1	4	5V3300141408	3.54	1.57	3.54	1.57	3.54	2.13
3'' x 3'' x 2''	1	4	5V3300141410	3.54	1.57	3.54	1.57	3.70	2.13
3'' x 3'' x 3/4''	1	6	5V3300141405	3.03	1.06	3.03	1.06	3.03	2.13
4'' x 4'' x 1/2''	1	3	5V3300181804	3.46	1.06	3.46	1.06	3.35	2.60
4'' x 4'' x 1''	1	3	5V3300181806	3.46	1.06	3.46	1.06	3.50	2.60
4'' x 4'' x 1 1/2''	1	3	5V3300181808	3.98	1.57	3.98	1.57	4.02	2.60
4'' x 4'' x 2''	1	2	5V3300181810	3.98	1.57	3.98	1.57	4.17	2.60
4'' x 4'' x 3/4''	1	3	5V3300181805	3.46	1.06	3.46	1.06	3.50	2.60
