5V3500

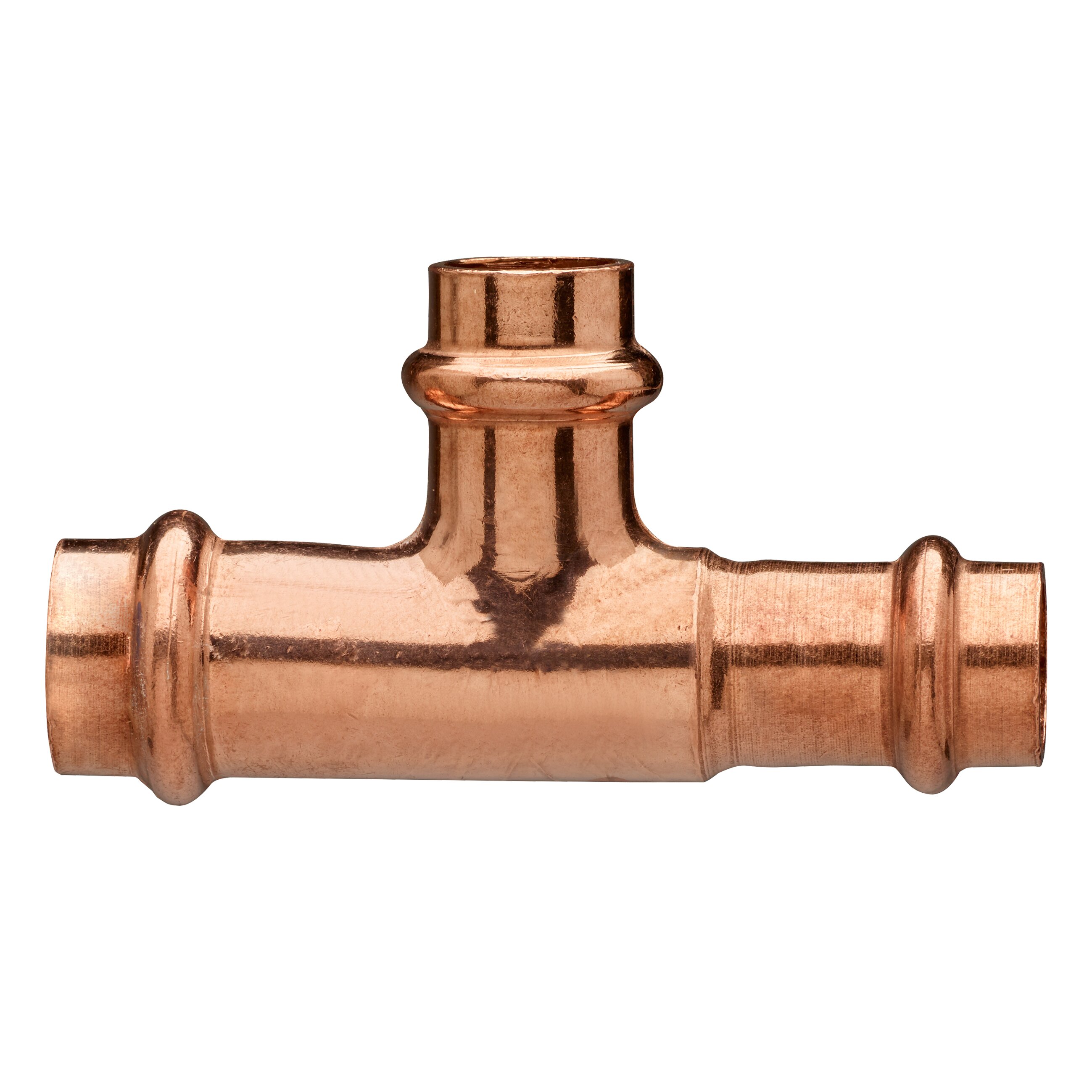

Copper F/F/F reducing T with one of the two lateral ends larger than the others.

Technical specifications

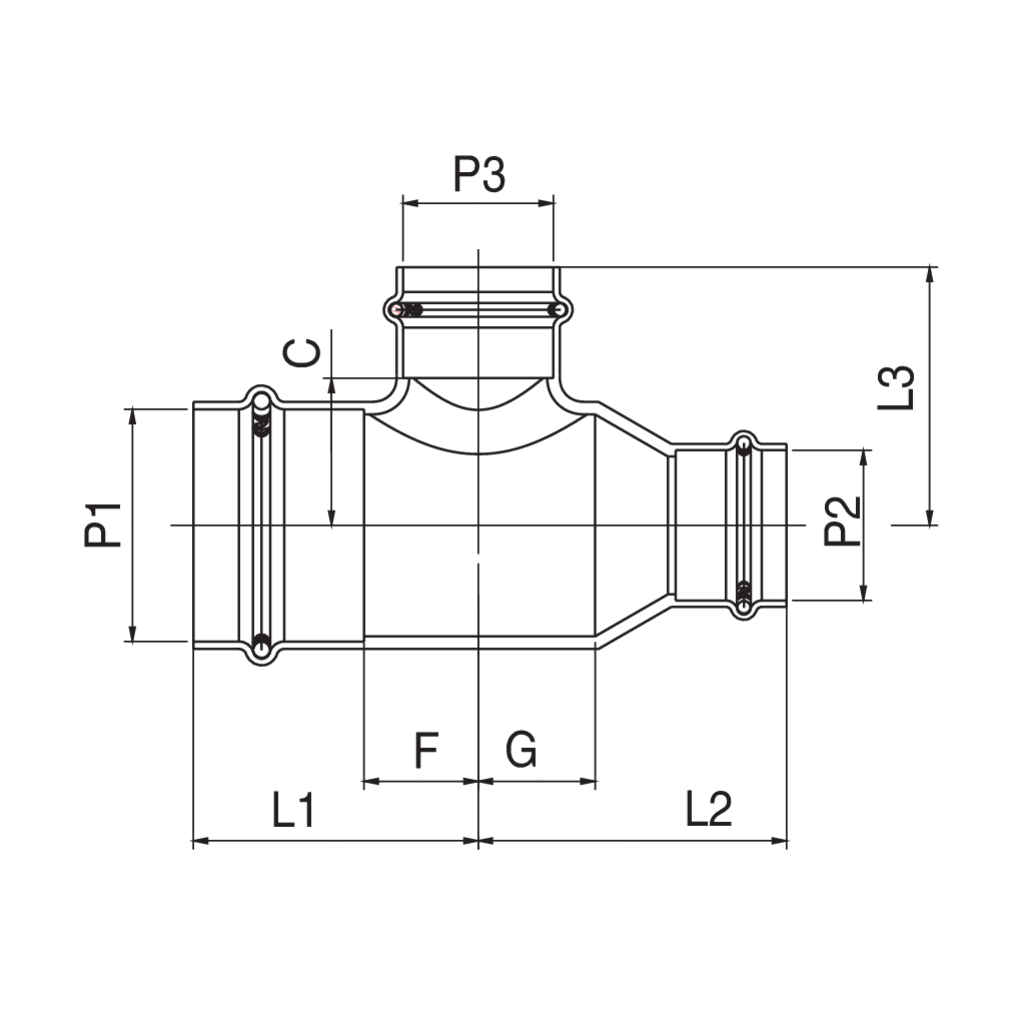

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
1 1/4'' x 1'' x 1''	1	35	5V3500070606	1.85	0.83	2.01	1.08	1.73	0.83
1 1/2'' x 1'' x 1''	1	24	5V3500080606	2.56	1.14	2.68	1.77	2.28	1.38
1 1/2'' x 1 1/4'' x 1 1/4''	1	24	5V3500080707	2.56	1.14	2.68	1.65	2.40	1.38
1'' x 3/4'' x 3/4''	5	70	5V3500060505	1.63	0.73	1.91	1.00	1.57	0.67
2'' x 1 1/2'' x 1 1/2''	1	14	5V3500100808	2.83	1.26	3.35	1.93	3.11	1.69
3/4'' x 1/2'' x 1/2''	5	100	5V3500050404	1.42	0.51	1.42	0.67	1.38	0.63

Available media and videos

BIM

5V3500_Copper.zip
