5V3500

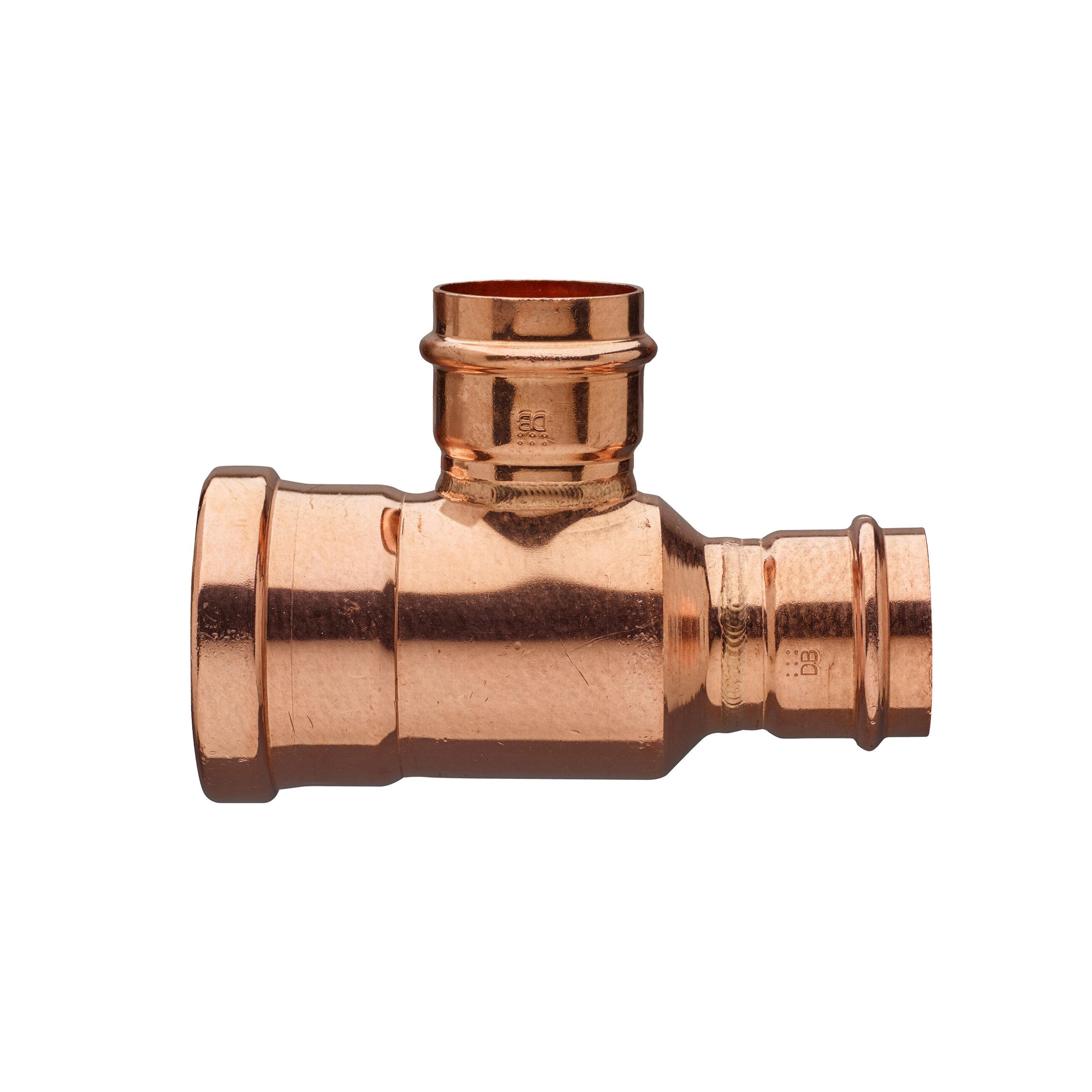

Copper F/F/F reducing T with one of the two lateral ends larger than the others.

Technical specifications

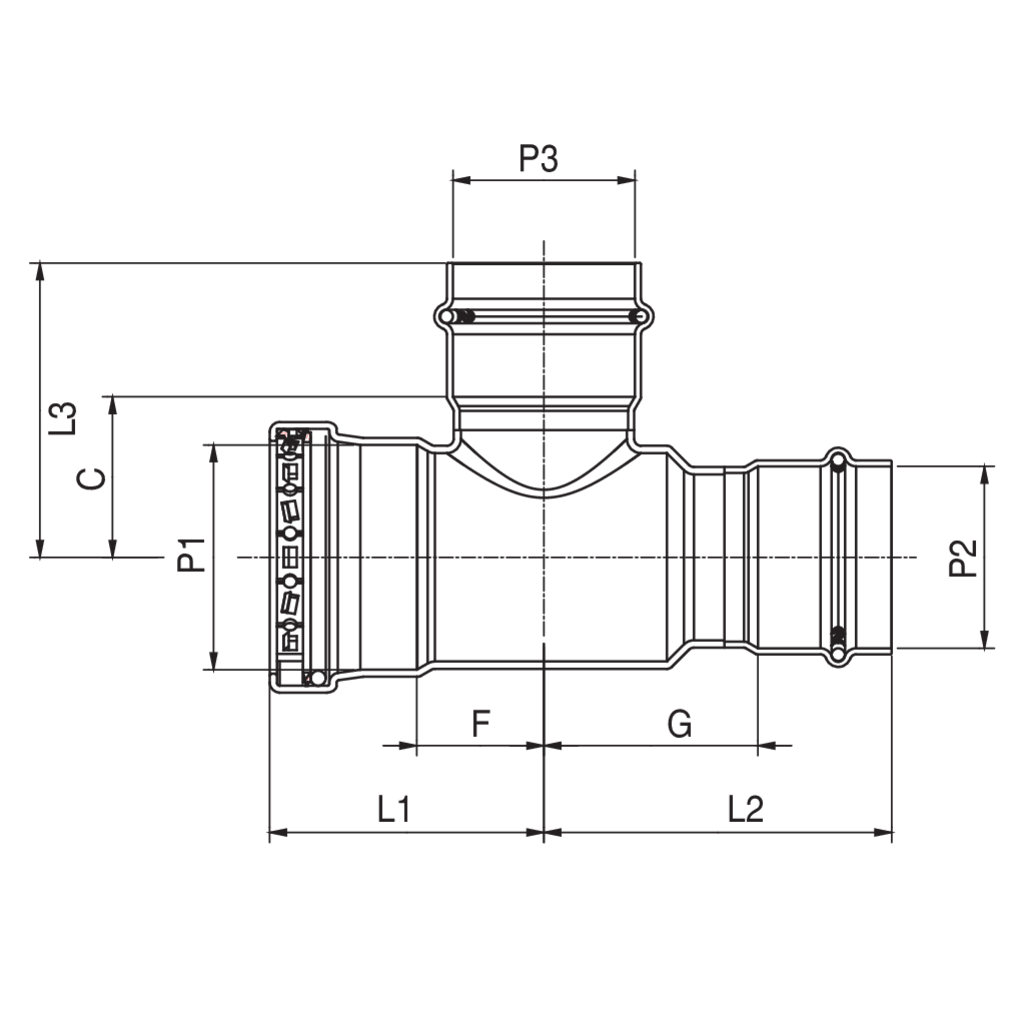

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
3'' x 2'' x 2''	1	3	5V3500141010	3.54	1.57	4.25	2.68	4.02	2.44

Available media and videos

BIM

5V3500_Copper.zip
