A Bonomi Group company

BONOMI PRESS

5V4900

Made in Italy

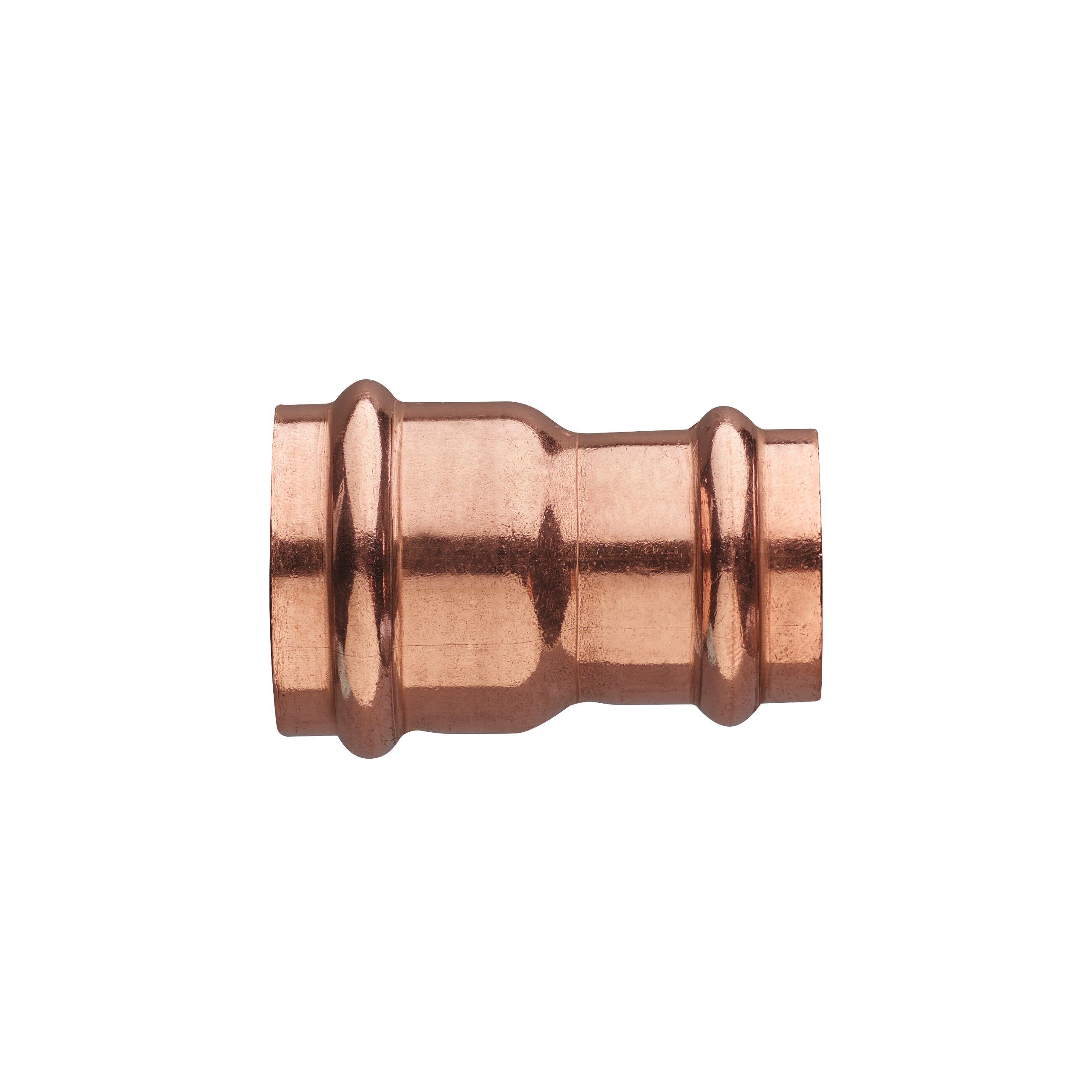

Copper F/F reducing coupling.

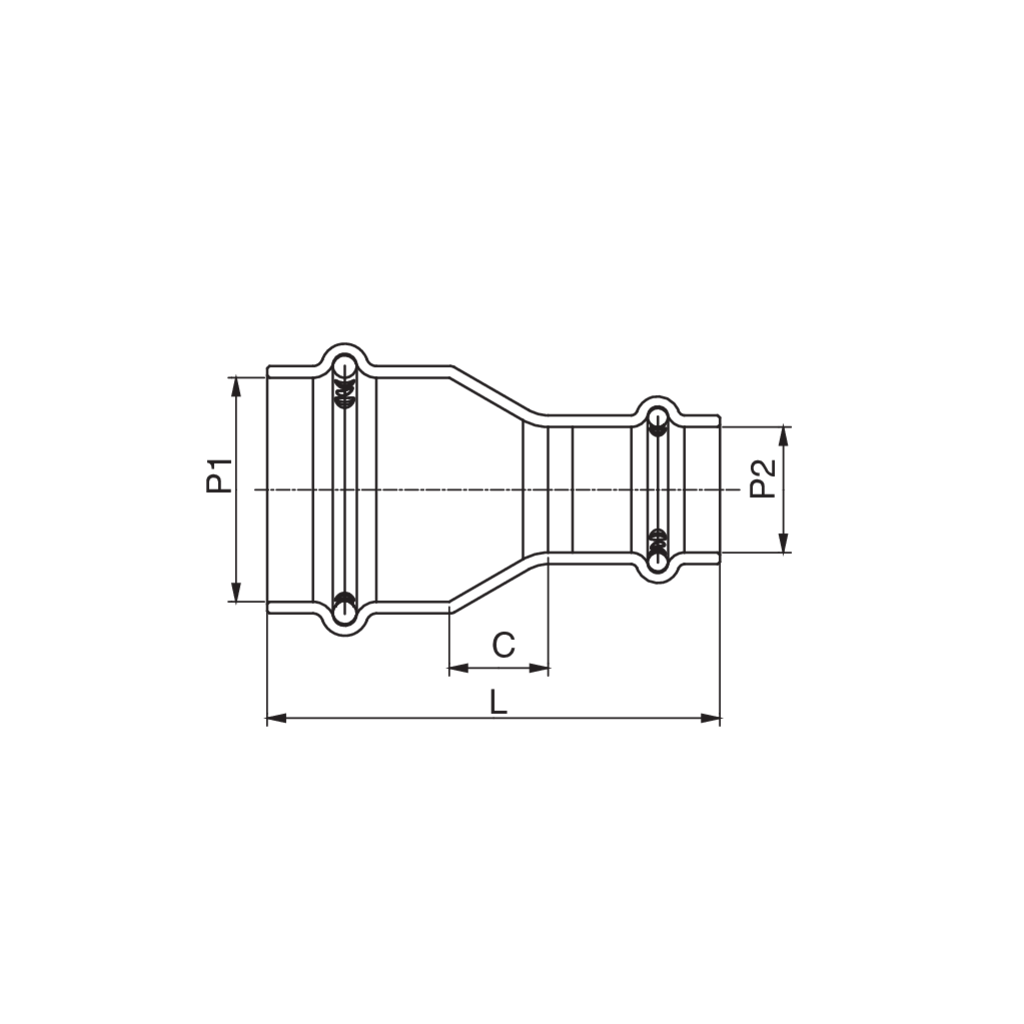

Technical specifications

P1 x P2	BAG	MASTER BOX	PART NO.	C	L
1'' x 1/2''	10	200	5V49000604	0.65	2.30
1 1/4'' x 1''	1	70	5V49000706	0.55	2.48
1 1/2'' x 1''	1	65	5V49000806	0.67	2.99
1 1/2'' x 1 1/4''	1	60	5V49000807	0.43	2.87
1'' x 3/4''	5	150	5V49000605	0.47	2.28
1 1/4'' x 3/4''	1	70	5V49000705	0.63	2.56
1 1/2'' x 3/4''	1	65	5V49000805	0.87	3.19
2'' x 1''	1	40	5V49001006	1.06	3.54
2'' x 1 1/4''	1	40	5V49001007	0.83	3.43
2'' x 1 1/2''	1	30	5V49001008	0.75	3.74
2'' x 3/4''	1	40	5V49001005	1.30	3.78
3/4'' x 1/2''	10	250	5V49000504	0.43	2.09
