5V4900

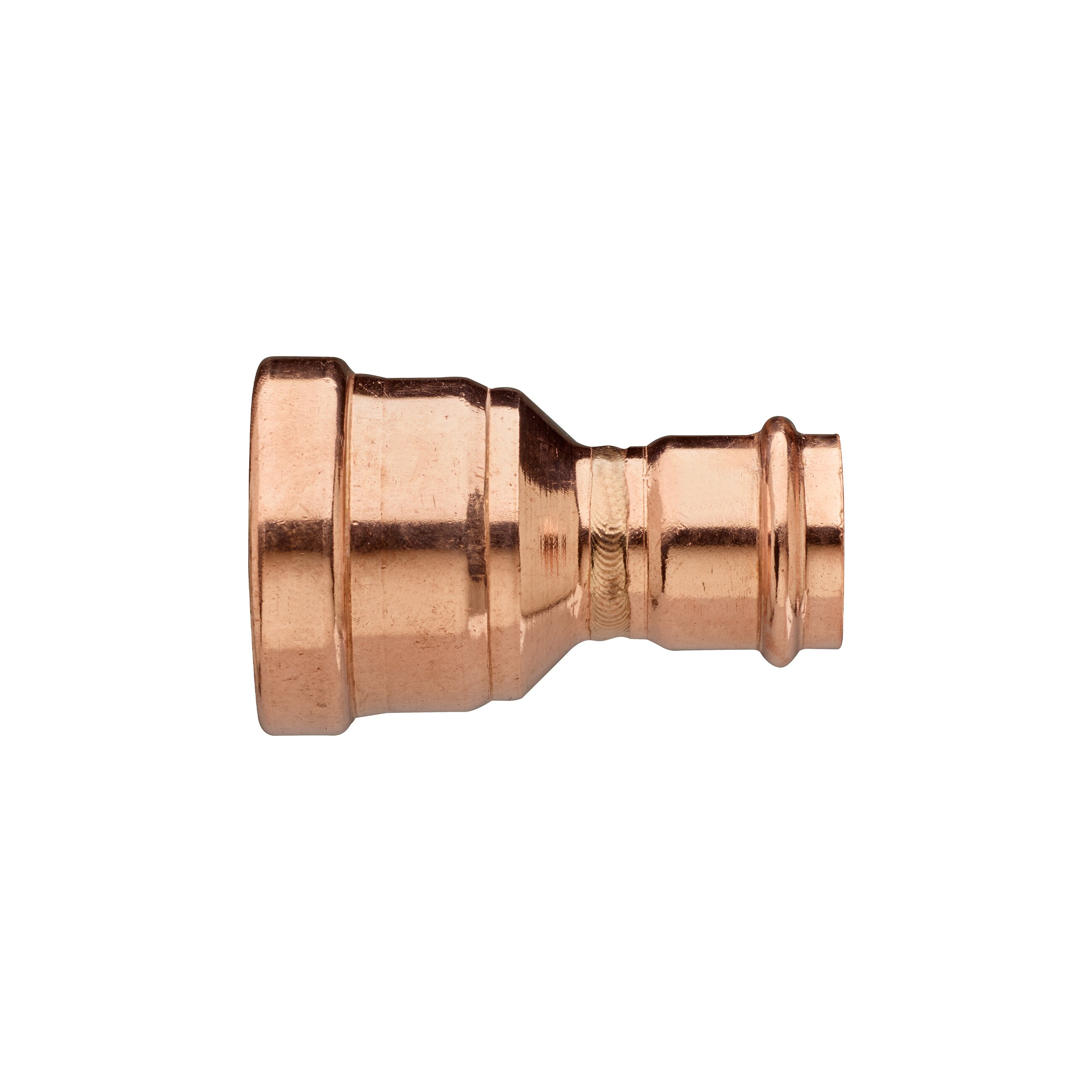

Copper F/F reducing coupling.

Technical specifications

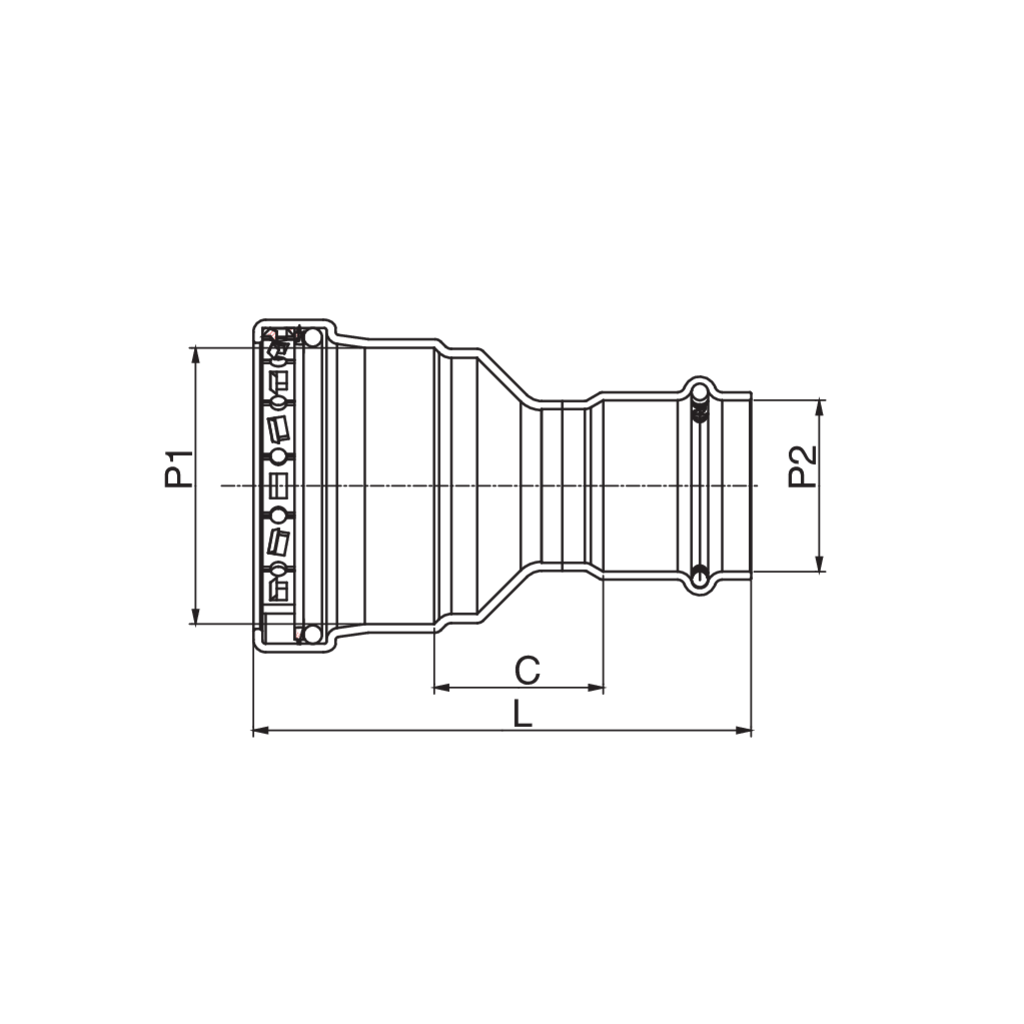

P1 x P2	BAG	MASTER BOX	PART NO.	C	L
2 1/2'' x 1 1/2''	1	15	5V49001208	1.61	4.76
2 1/2'' x 2''	1	14	5V49001210	1.38	4.69
3'' x 1 1/2''	1	10	5V49001408	1.89	5.28
3'' x 2''	1	10	5V49001410	1.61	5.16
3'' x 2 1/2''	1	8	5V49001412	1.42	5.12
4'' x 2''	1	4	5V49001810	2.13	6.10

Available media and videos

BIM

5V4900_Copper.zip
