5V5500

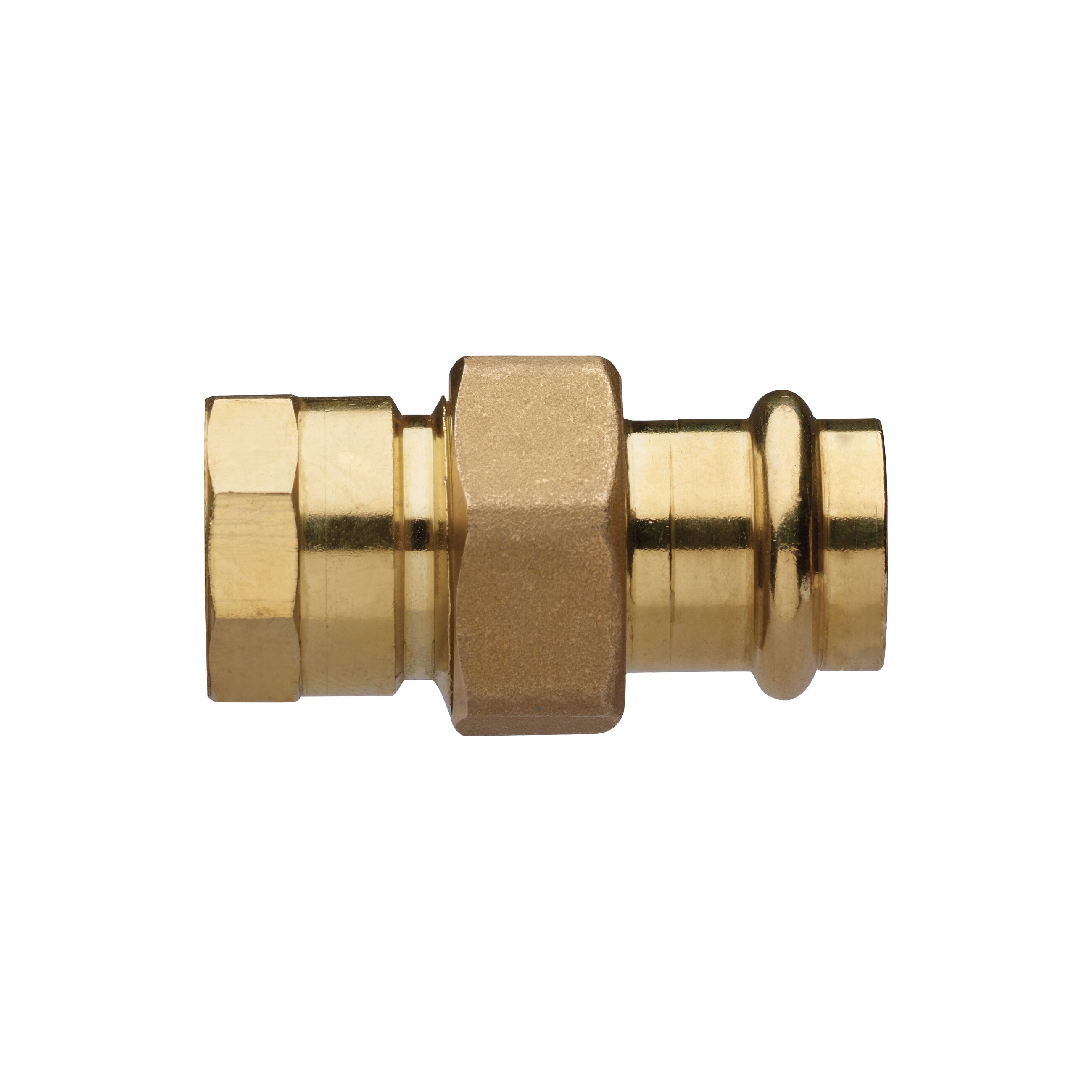

Brass F/female thread flat seat union.

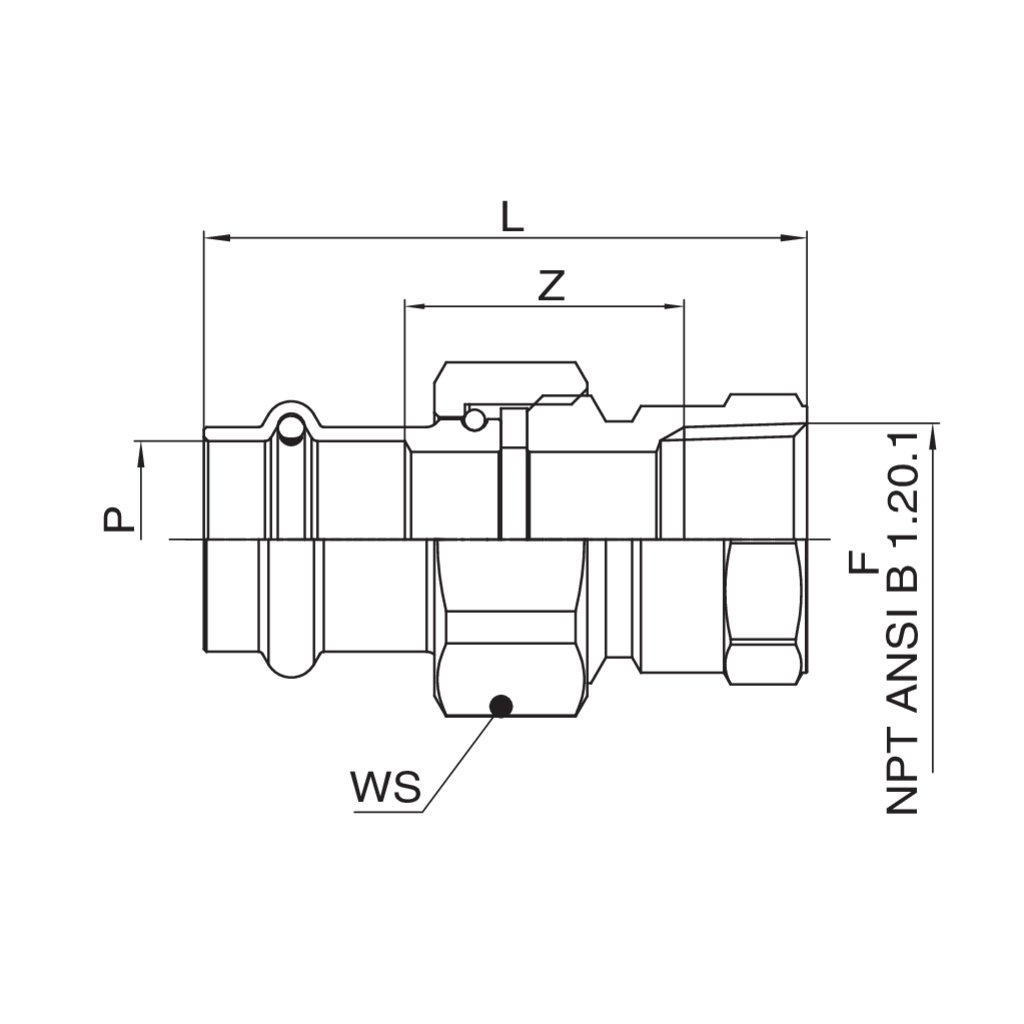

Technical specifications

P x F	BAG	MASTER BOX	PART NO.	L	Z	WS
1/2'' x 1/2''	1	150	5V55000404	2.36	1.12	1.18
1'' x 1''	1	60	5V55000606	2.72	1.11	1.85
1 1/4'' x 1 1/4''	1	40	5V55000707	3.25	1.54	2.05
1 1/2'' x 1 1/2''	1	30	5V55000808	3.40	1.42	2.36
2'' x 2''	1	15	5V55001010	3.76	1.49	2.95
3/4'' x 3/4''	1	100	5V55000505	2.72	1.26	1.46
