BONOMI PRESSMAX GAS

5L13

Made in Italy

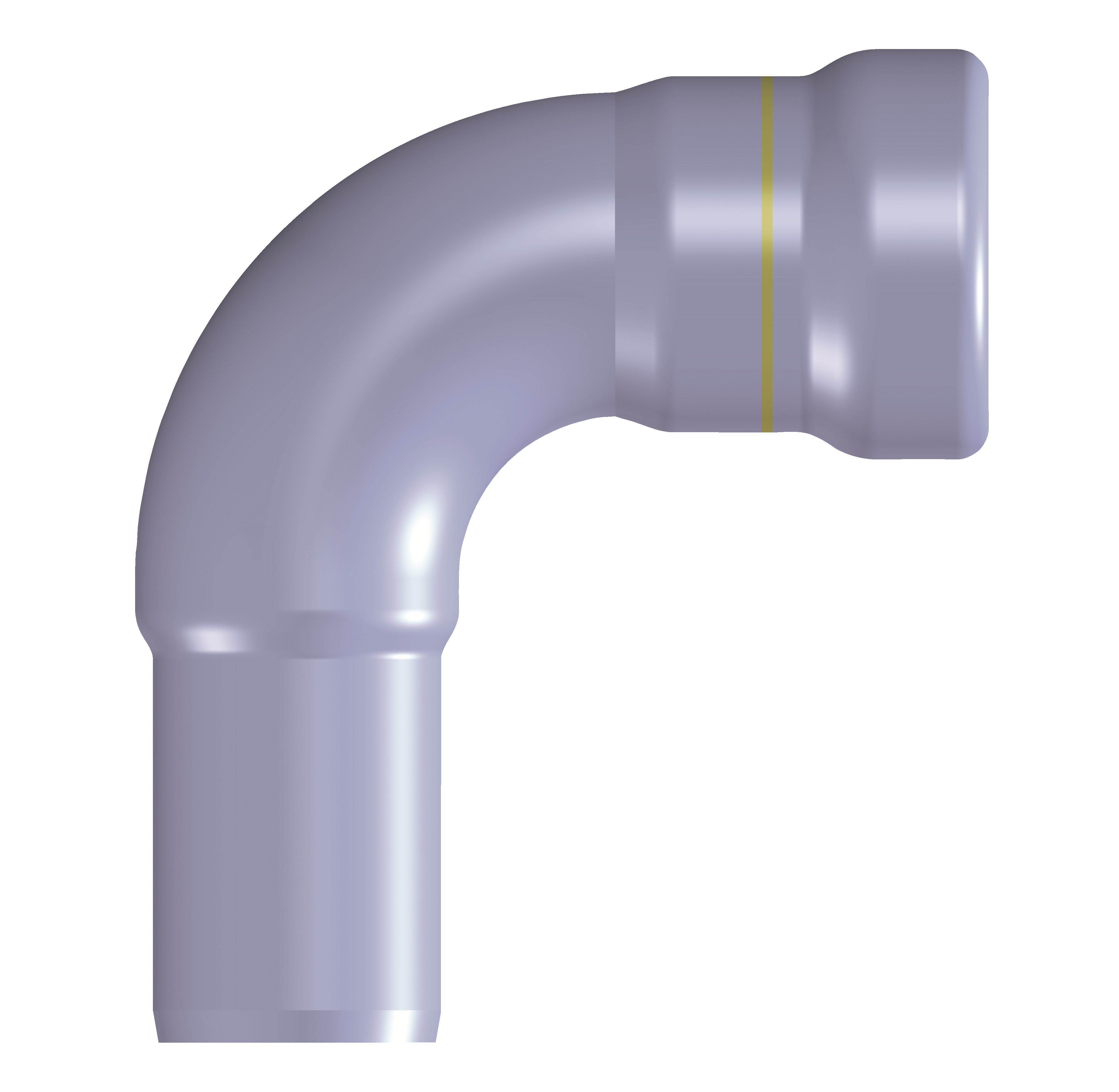

Carbon steel FTG/P 90° elbow from 1/2" to 2".

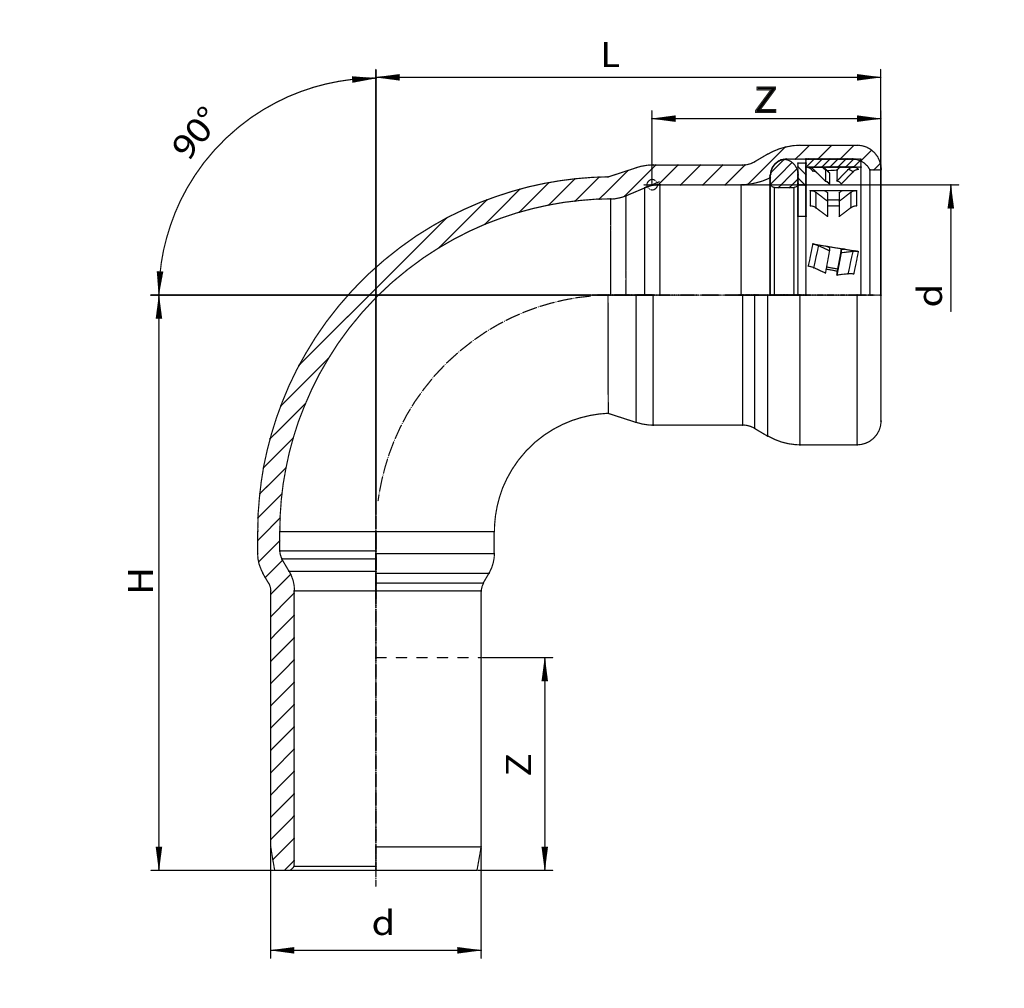

Technical specifications

SIZE	L	H	Z
1/2''	2.24	2.56	1.06
3/4''	2.52	2.87	1.14
1''	3.07	3.39	1.34
1 1/4''	3.82	4.04	1.81
1 1/2''	4.13	4.21	1.89
2''	4.78	5.08	1.97
