BONOMI PRESSMAX GAS

5L31

Made in Italy

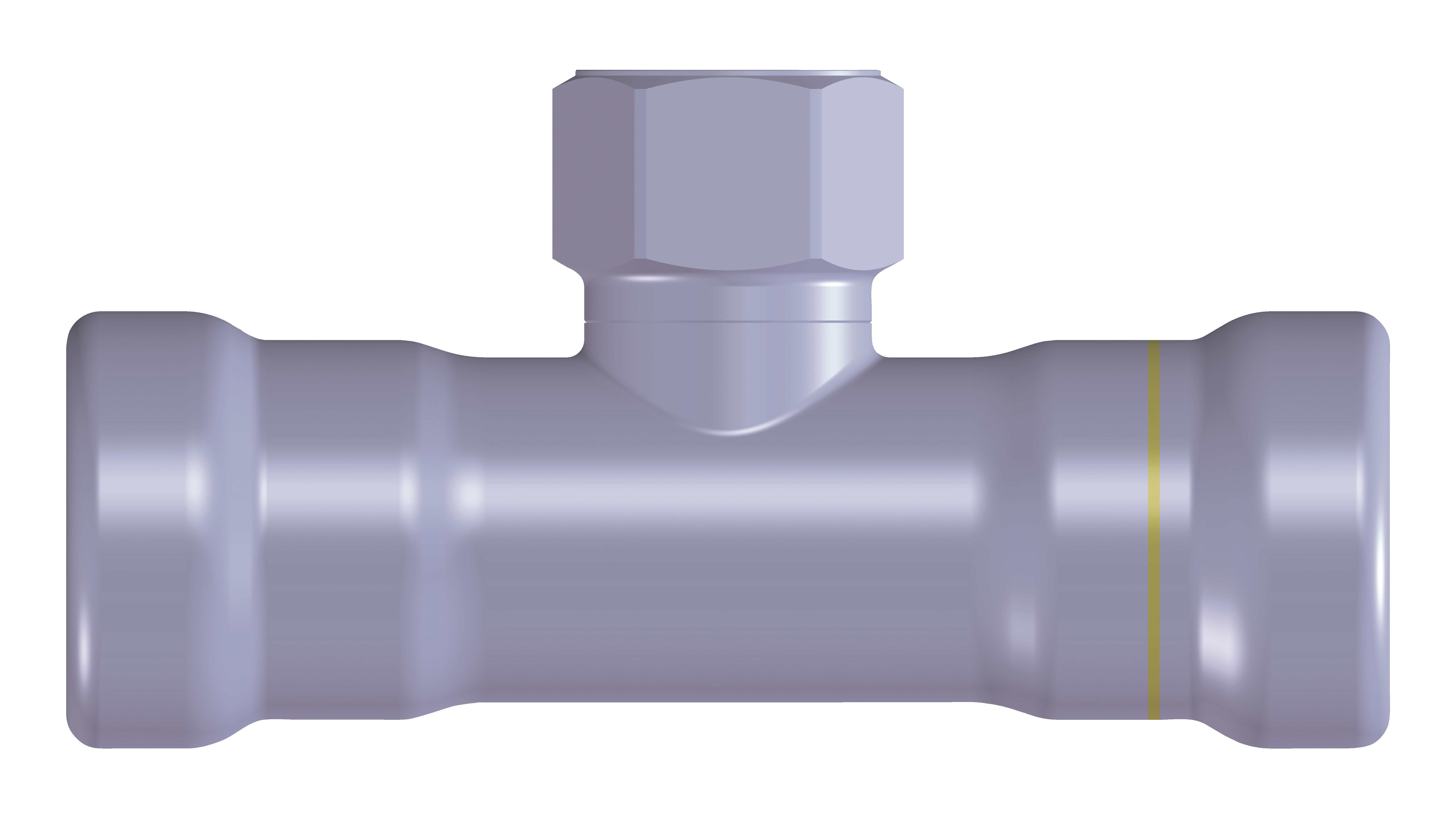

Carbon steel P/P/FPT tee from 1/2'' to 2''.

Technical specifications

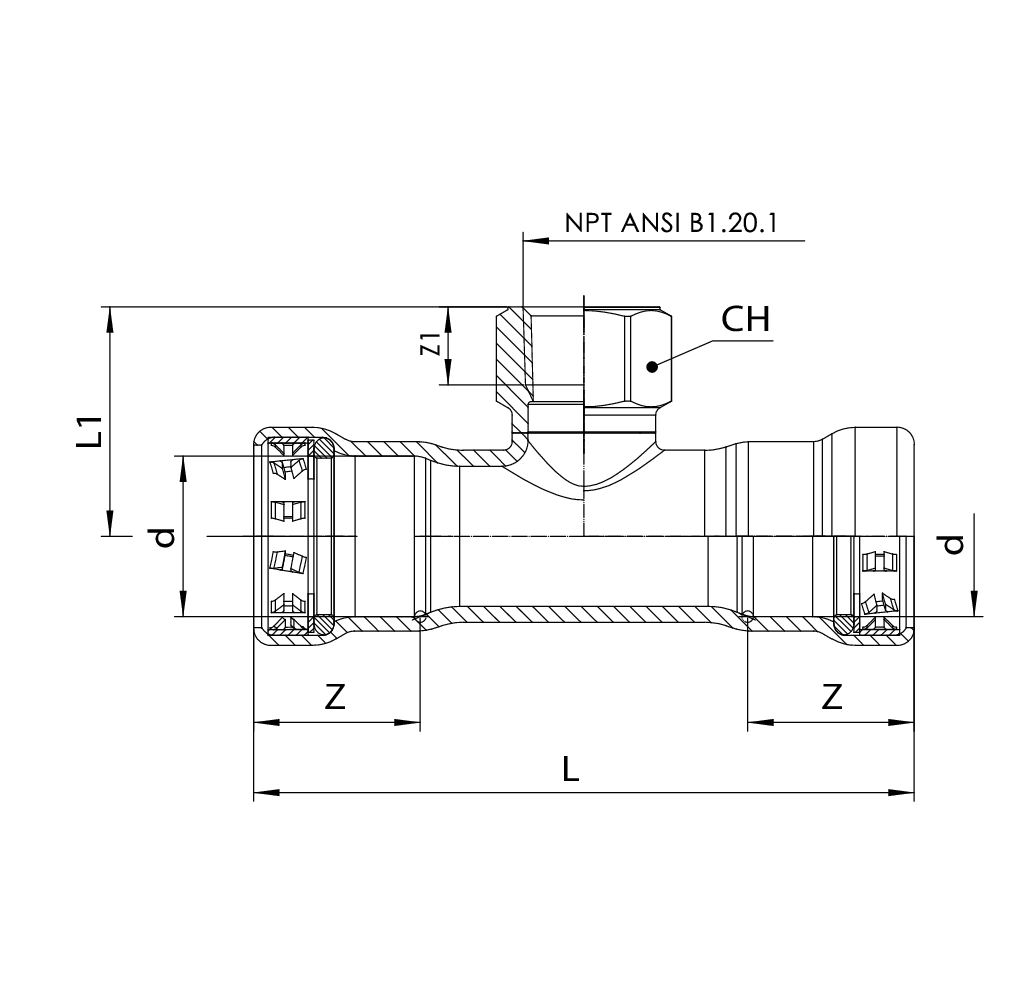

d x d x NPT	L	Z	Z1	L1
1 1/4'' x 1 1/4'' x 1/2''	6.46	1.81	0.54	1.85
1'' x 1'' x 1/2''	5.16	1.34	0.54	1.71
1 1/2'' x 1 1/2'' x 3/4''	6.89	1.89	0.55	1.97
1 1/4'' x 1 1/4'' x 3/4''	6.46	1.81	0.55	1.89
1'' x 1'' x 3/4''	5.16	1.34	0.55	1.73
2'' x 2'' x 1/2''	7.60	1.97	0.54	2.24
2'' x 2'' x 3/4''	7.60	1.97	0.55	2.28
3/4'' x 3/4'' x 3/4''	4.53	1.14	0.54	1.57
3/4'' x 3/4'' x 3/4''	4.53	1.14	0.55	1.57
