BONOMI PRESSMAX GAS

5L33

Made in Italy

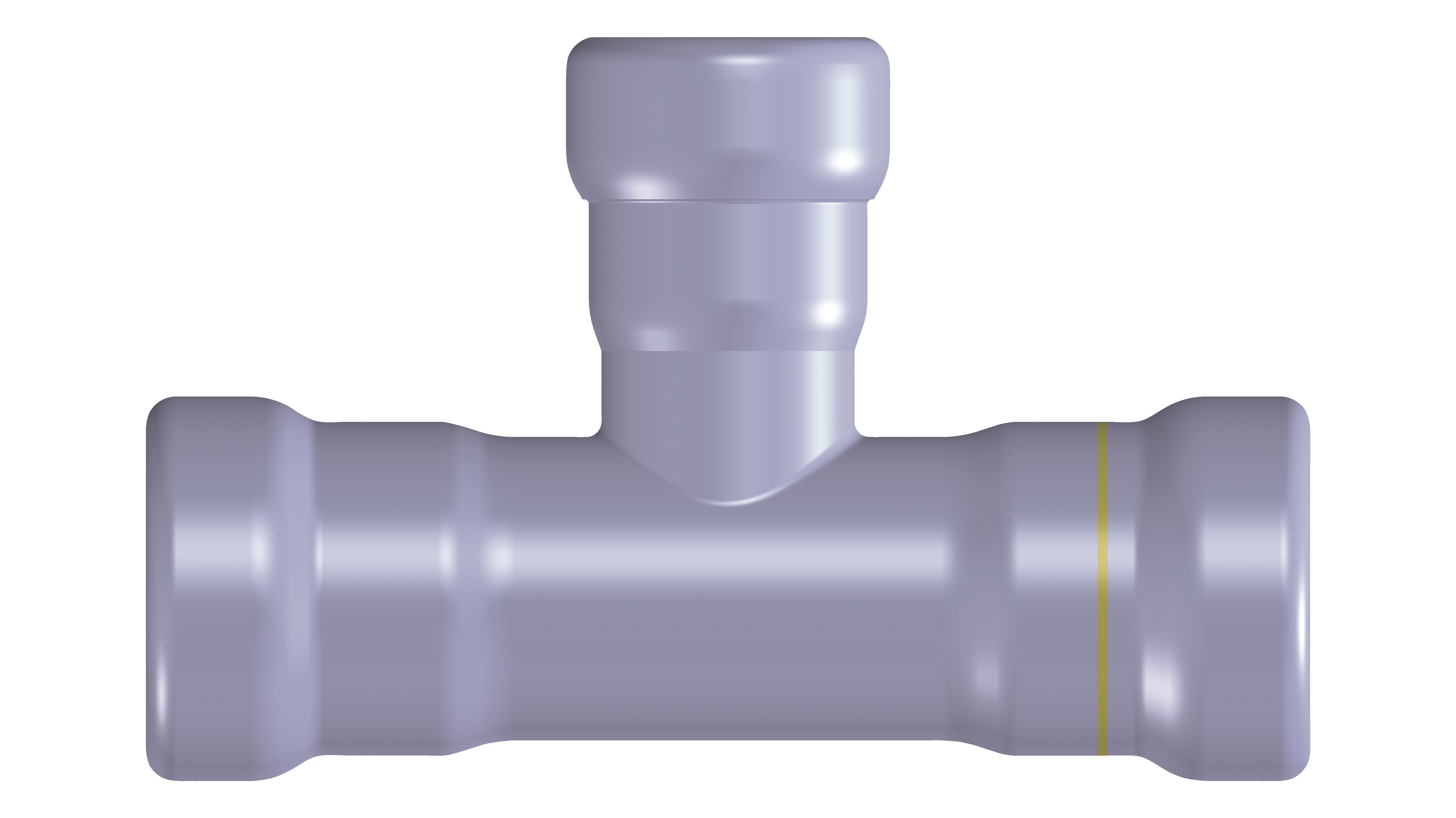

Carbon steel P/P/P reducing tee from 1/2" to 4".

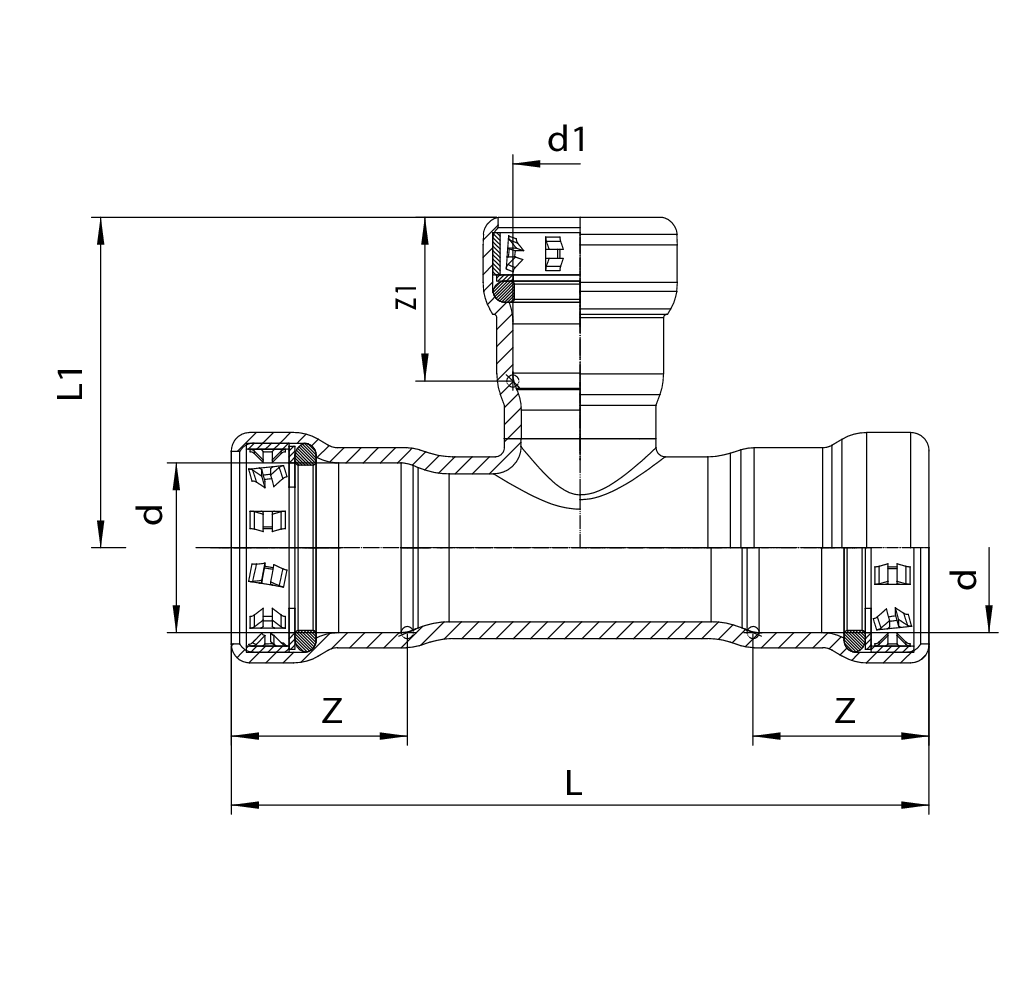

Technical specifications

d x d x d1	L	Z	L1	Z1
1 1/2'' x 1 1/2'' x 1 1/4''	6.89	1.89	3.37	1.81
1 1/2'' x 1 1/2'' x 1''	6.89	1.89	2.83	1.34
1 1/2'' x 1 1/2'' x 1/2''	6.89	1.89	2.52	1.06
1 1/4'' x 1 1/4'' x 1''	6.46	1.81	2.70	1.34
1 1/4'' x 1 1/4'' x 1/2''	6.46	1.81	2.42	1.06
1'' x 1'' x 1/2''	5.16	1.34	2.28	1.06
1 1/2'' x 1 1/2'' x 3/4''	6.89	1.89	2.64	1.14
1 1/4'' x 1 1/4'' x 3/4''	6.46	1.81	2.56	1.14
1'' x 1'' x 3/4''	5.16	1.34	2.40	1.14
2'' x 2'' x 1 1/2''	7.60	1.97	3.72	1.89
2'' x 2'' x 1 1/4''	7.60	1.97	3.60	1.81
2'' x 2'' x 1''	7.60	1.97	3.11	1.34
2'' x 2'' x 1/2''	7.60	1.97	2.81	1.06
2'' x 2'' x 3/4''	7.60	1.97	2.95	1.14
3/4'' x 3/4'' x 1/2''	4.53	1.14	2.15	1.06
