A Bonomi Group company

BONOMI PRESSMAX

5M00

Made in Italy

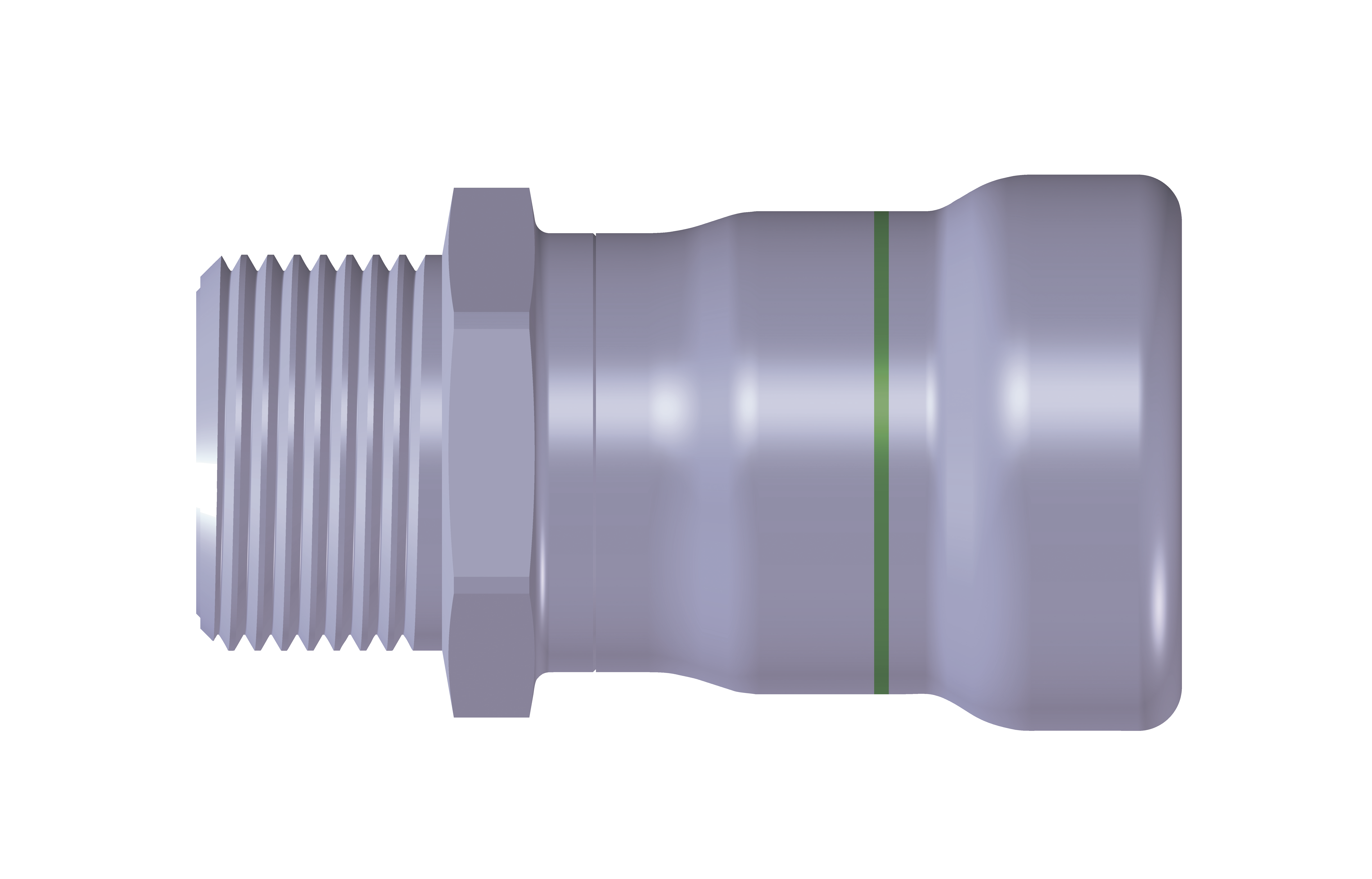

Carbon steel adapter MPT/P from 1/2'' to 4''.

Technical specifications

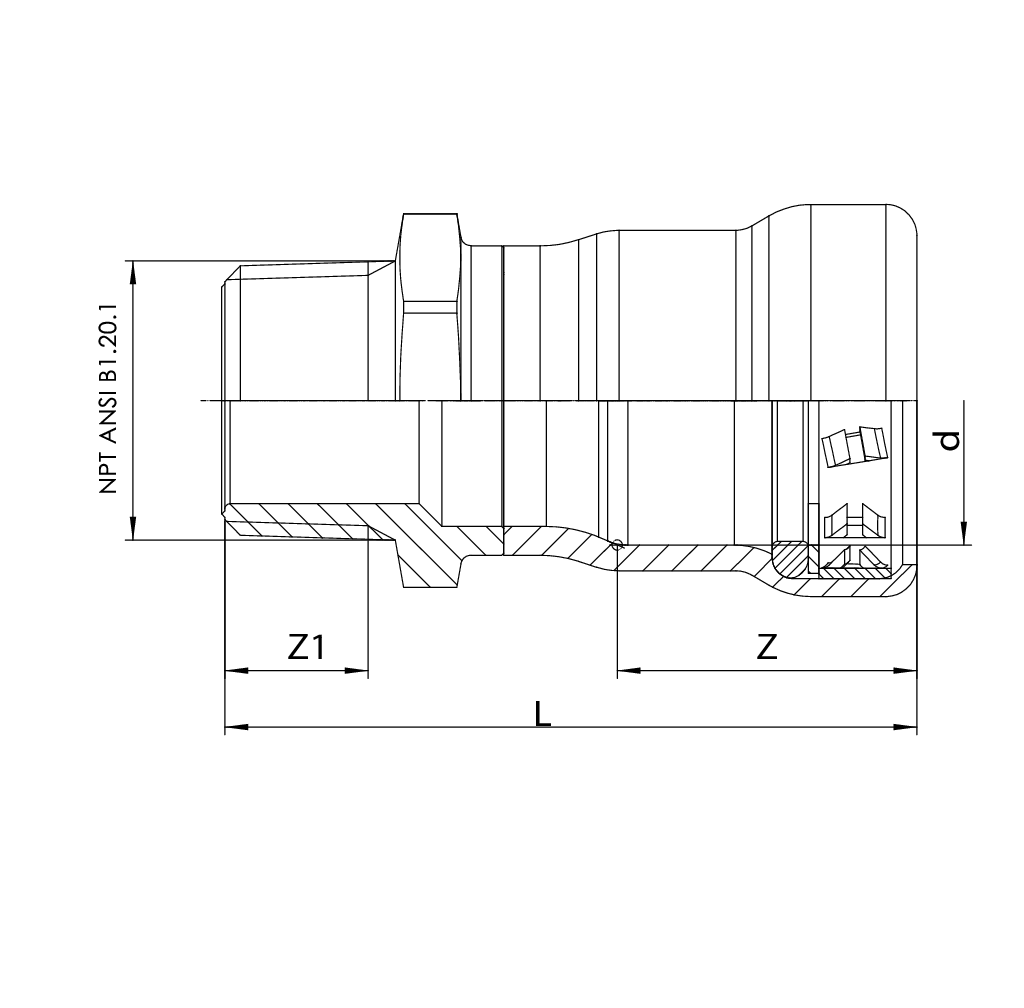

d x NPT	L	Z	Z1
1 1/2'' x 1 1/2''	3.88	1.89	0.72
1 1/4'' x 1 1/4''	3.64	1.81	0.71
1'' x 1''	3.01	1.34	0.68
1/2'' x 1/2''	2.52	1.06	0.53
2'' x 2''	3.92	1.97	0.76
3/4'' x 3/4''	2.64	1.14	0.55
