BONOMI PRESSMAX

5M04

Made in Italy

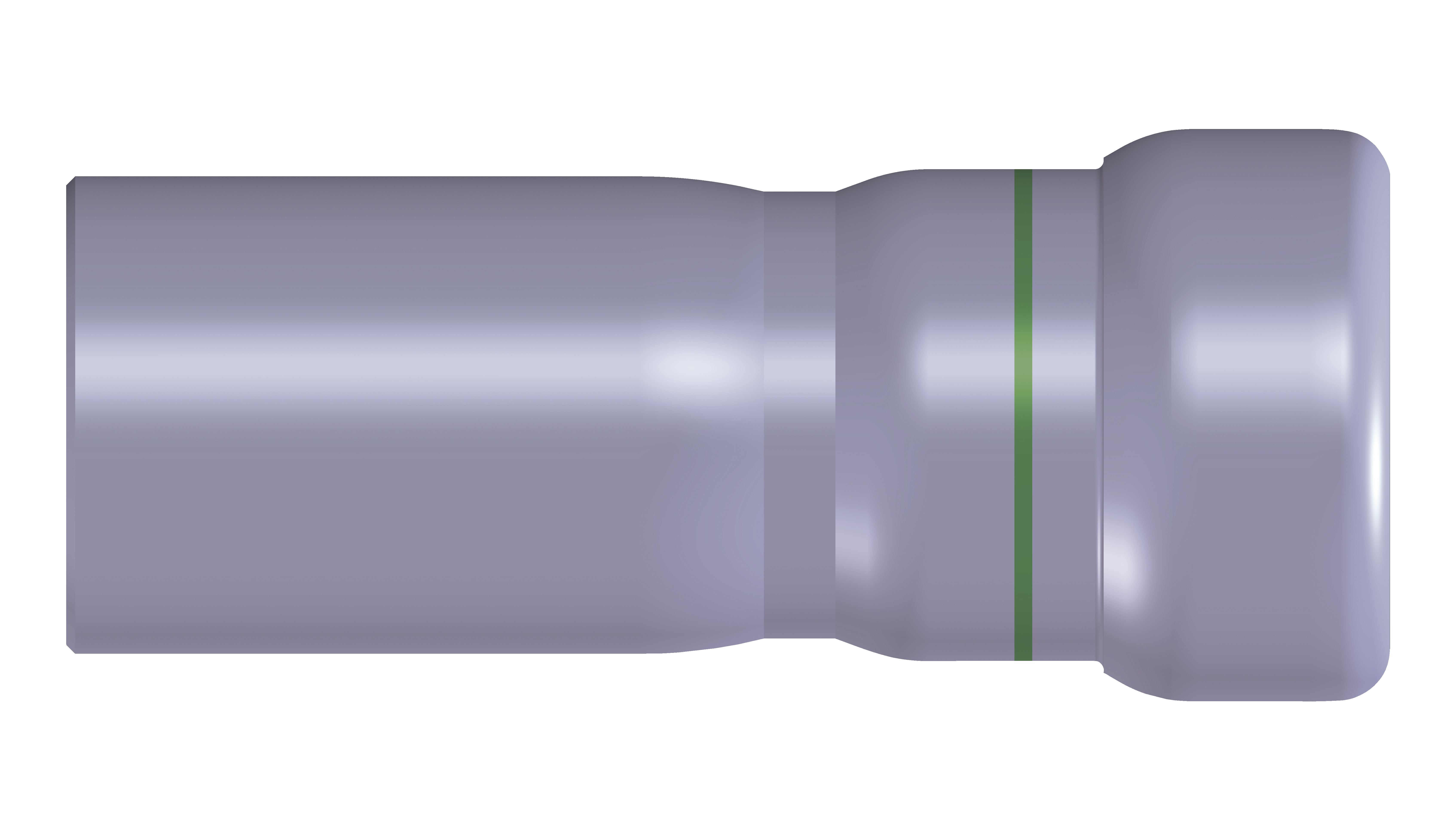

Carbon steel FTG/P reducer from 1/2'' to 4''.

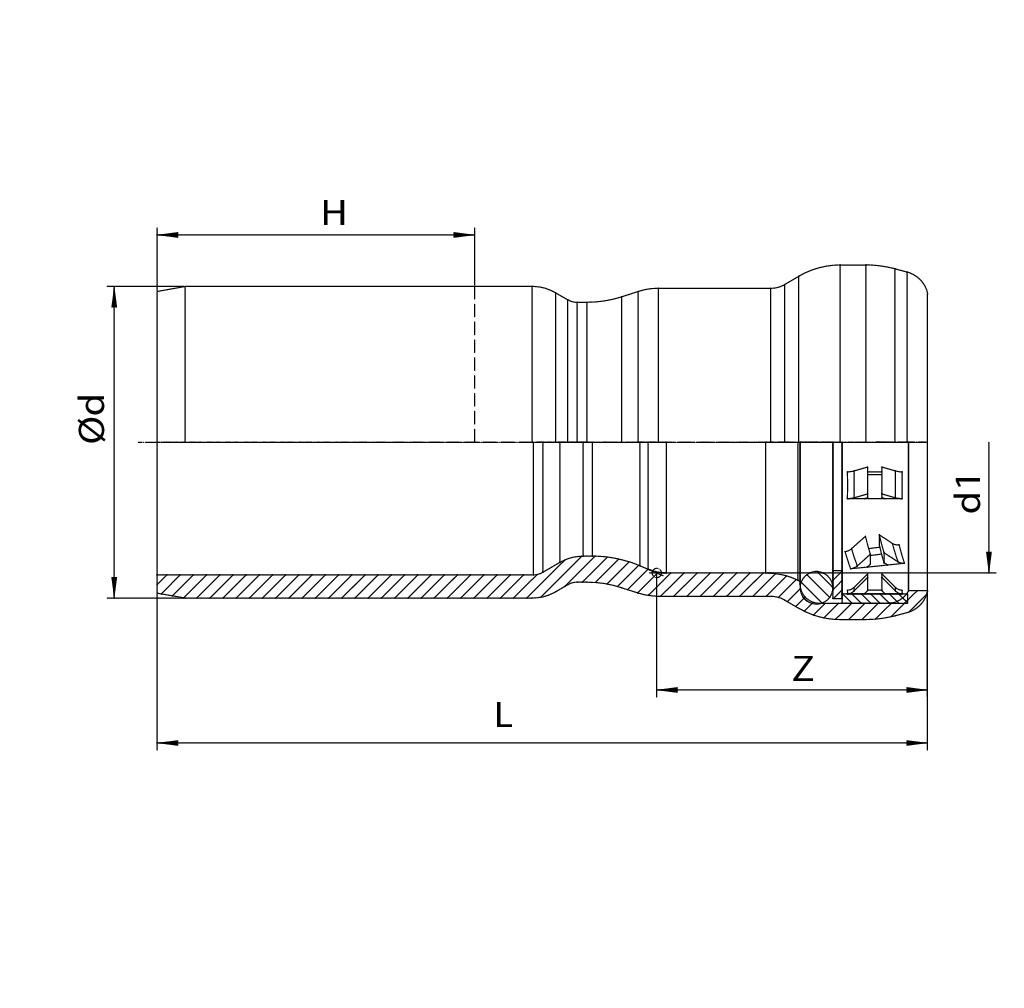

Technical specifications

d x d1	L	H	Z
1 1/2'' x 1 1/4''	4.53	1.89	1.81
1 1/2'' x 1''	4.15	1.89	1.34
1 1/4'' x 1''	3.98	1.81	1.34
1'' x 1/2''	3.21	1.34	1.06
1 1/2'' x 3/4''	4.13	1.89	1.14
1'' x 3/4''	3.25	1.34	1.14
2'' x 1 1/2''	4.82	1.97	1.89
2'' x 1 1/4''	4.82	1.97	1.81
2'' x 1''	4.49	1.97	1.34
3/4'' x 1/2''	2.85	1.14	1.06
