BONOMI PRESSMAX
5M05

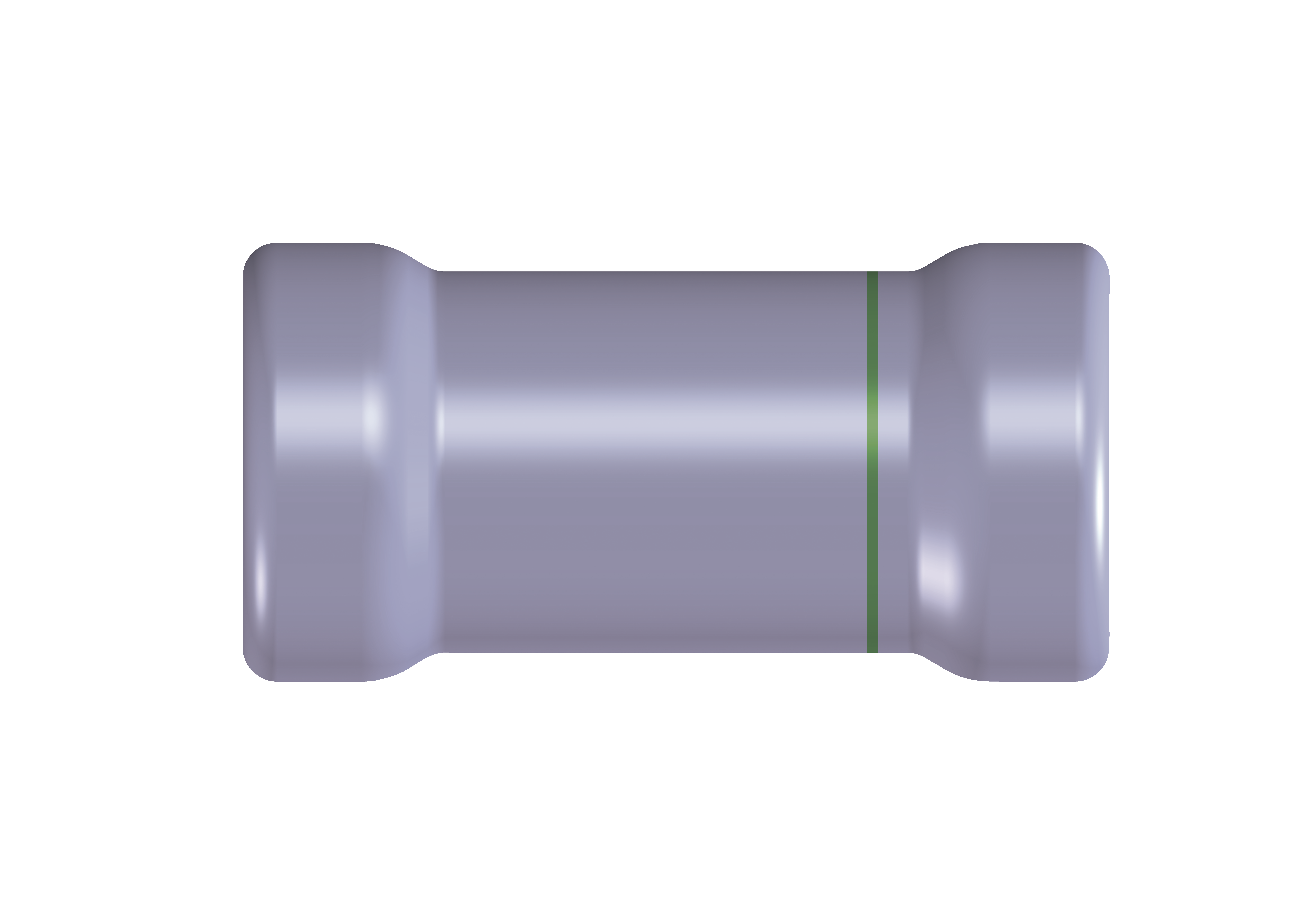

Carbon steel P/P slip coupling from 1/2'' to 4''.

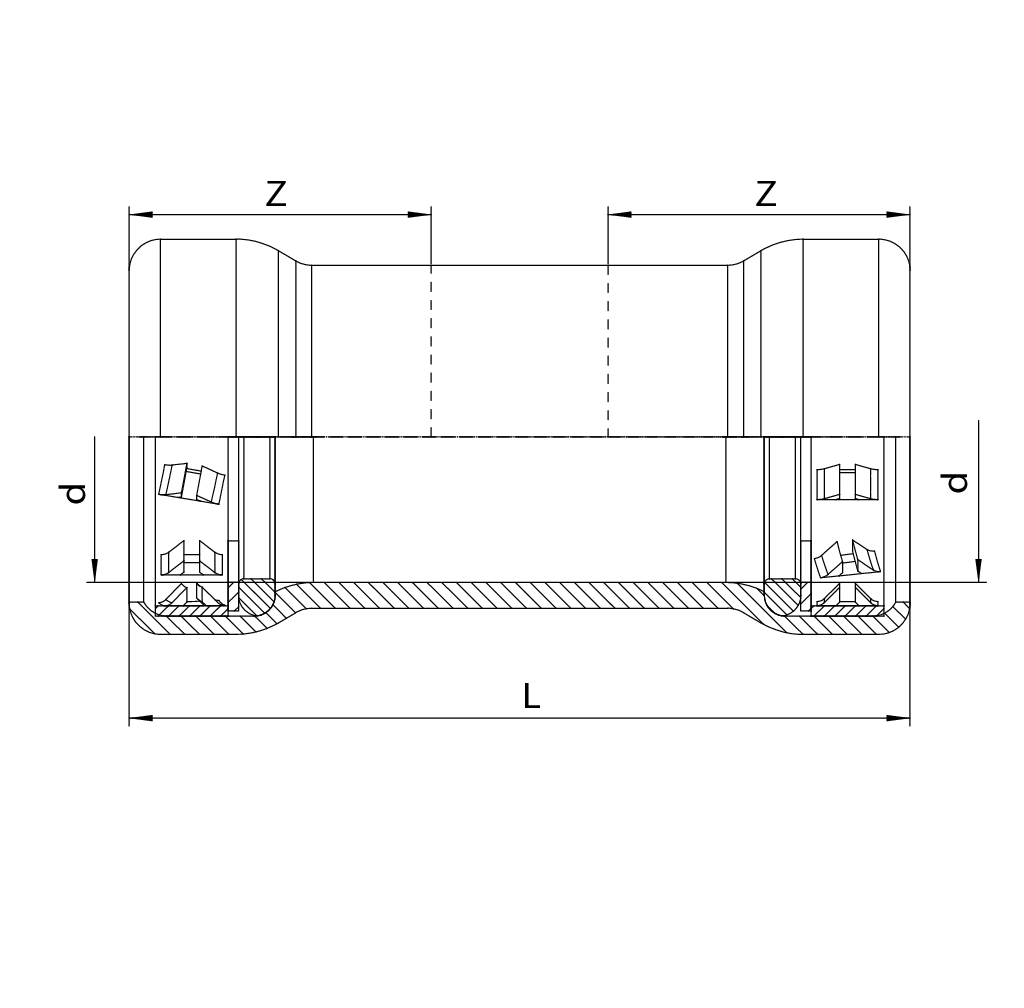

Technical specifications
SIZE
L
Z
1/2''
2.72
1.06
3/4''
2.95
1.14
1''
3.29
1.34
1 1/4''
4.31
1.81
1 1/2''
4.63
1.89
2''
4.74
1.97
