A Bonomi Group company

BONOMI PRESSMAX

5M12

Made in Italy

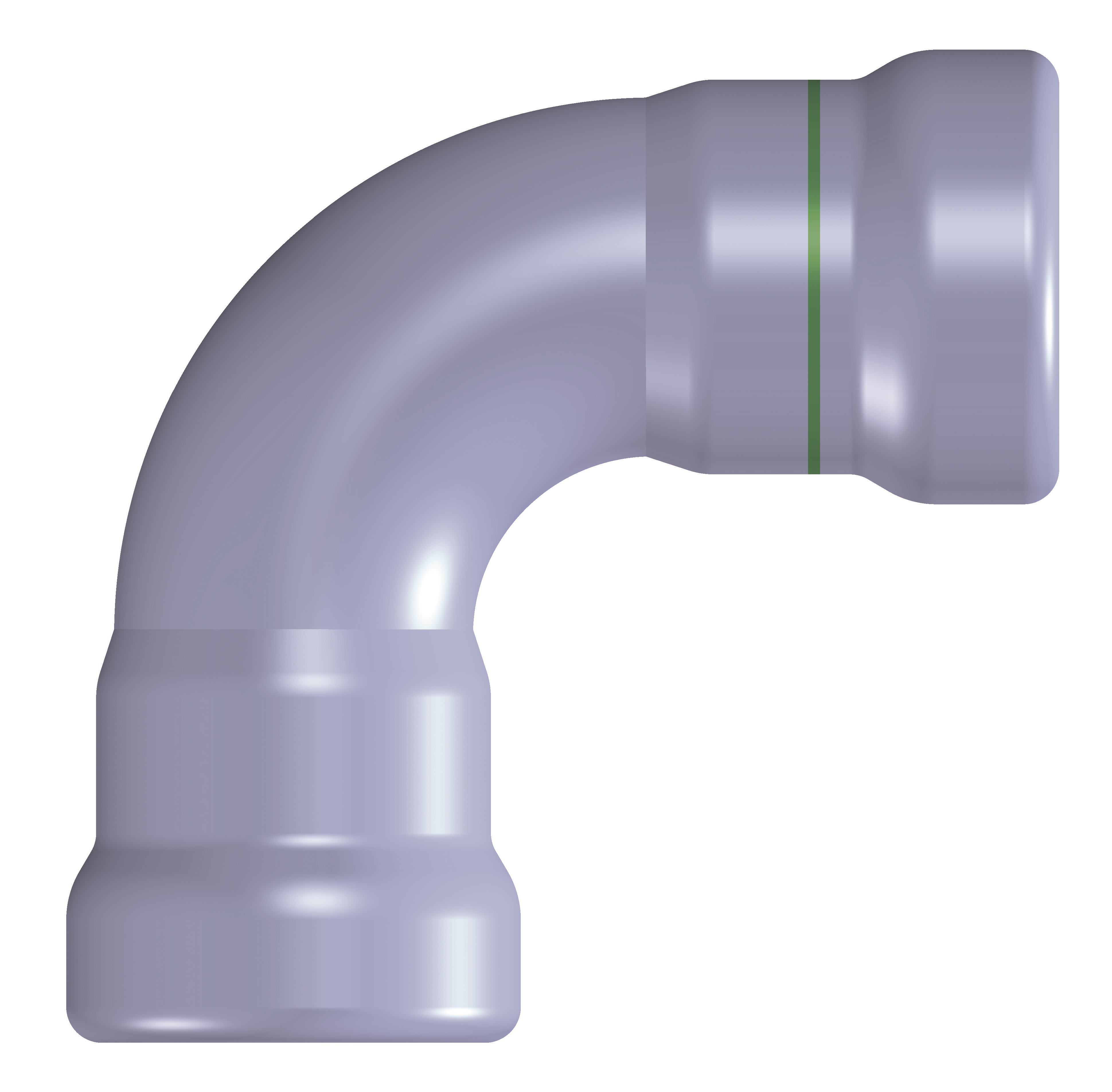

Carbon steel P/P 90° elbow from 1/2" to 4".

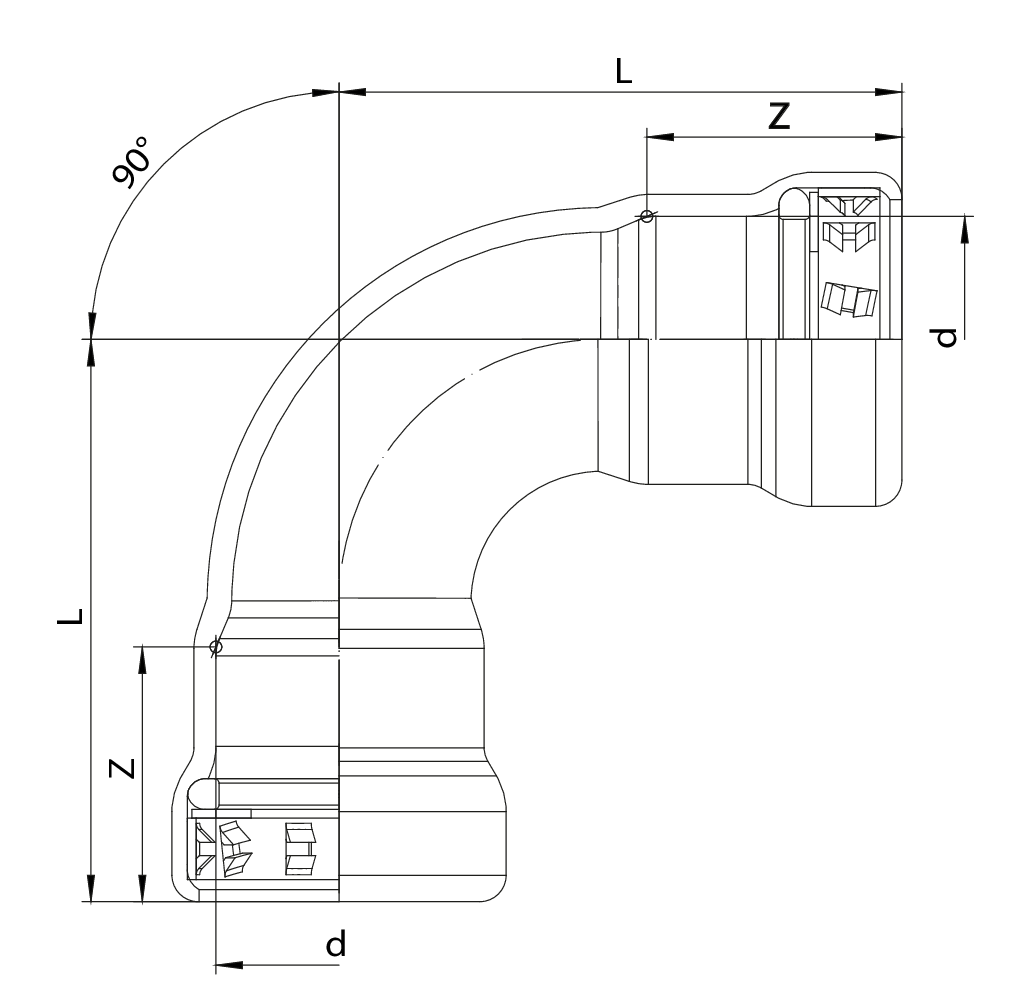

Technical specifications

SIZE	L	Z
1/2''	2.24	1.06
3/4''	2.52	1.14
1''	3.07	1.34
1 1/4''	3.82	1.81
1 1/2''	4.13	1.89
2''	4.78	1.97
