BONOMI PRESSMAX

5M15

Made in Italy

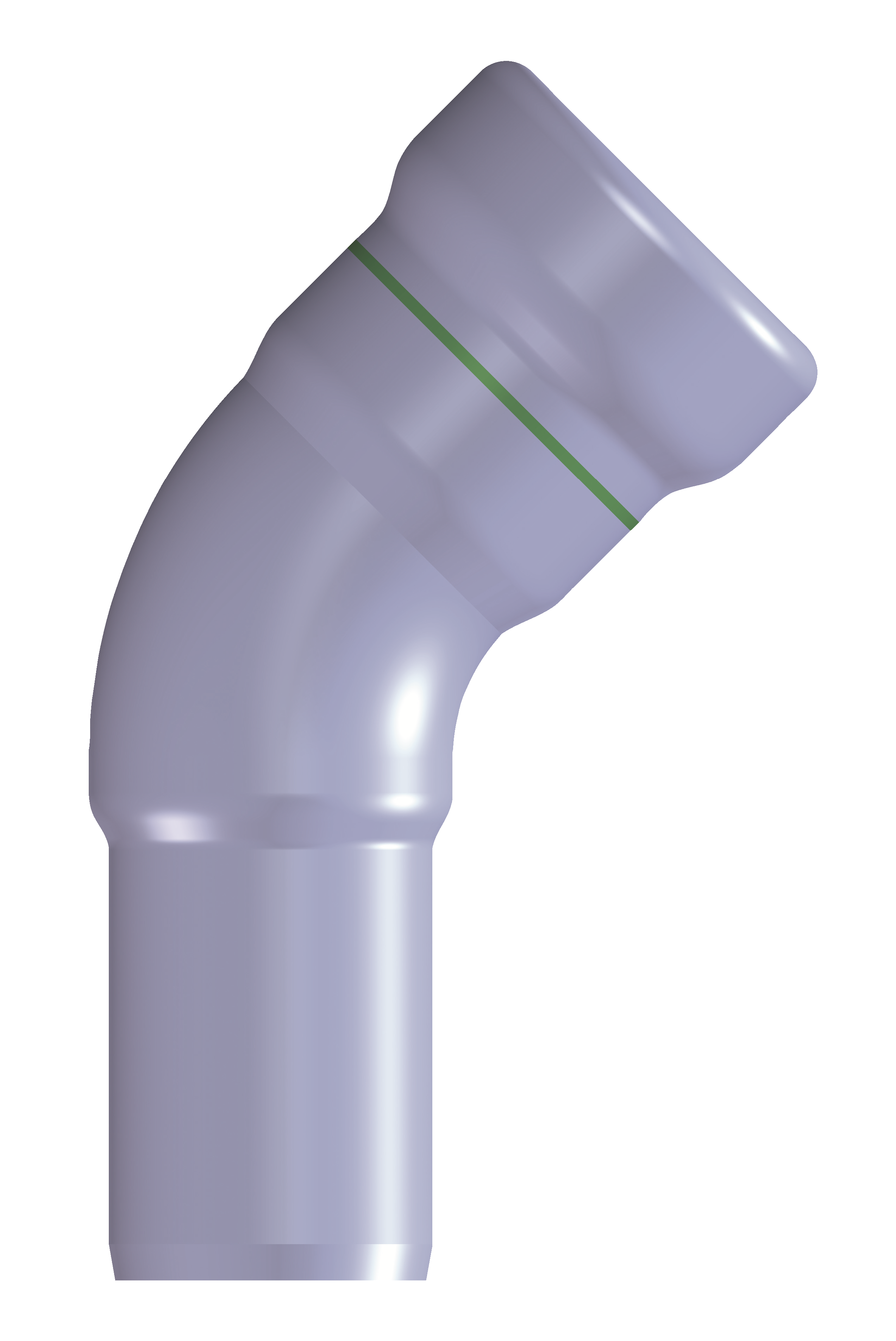

Carbon steel FTG/P 45° elbow, from 1/2" to 2".

Technical specifications

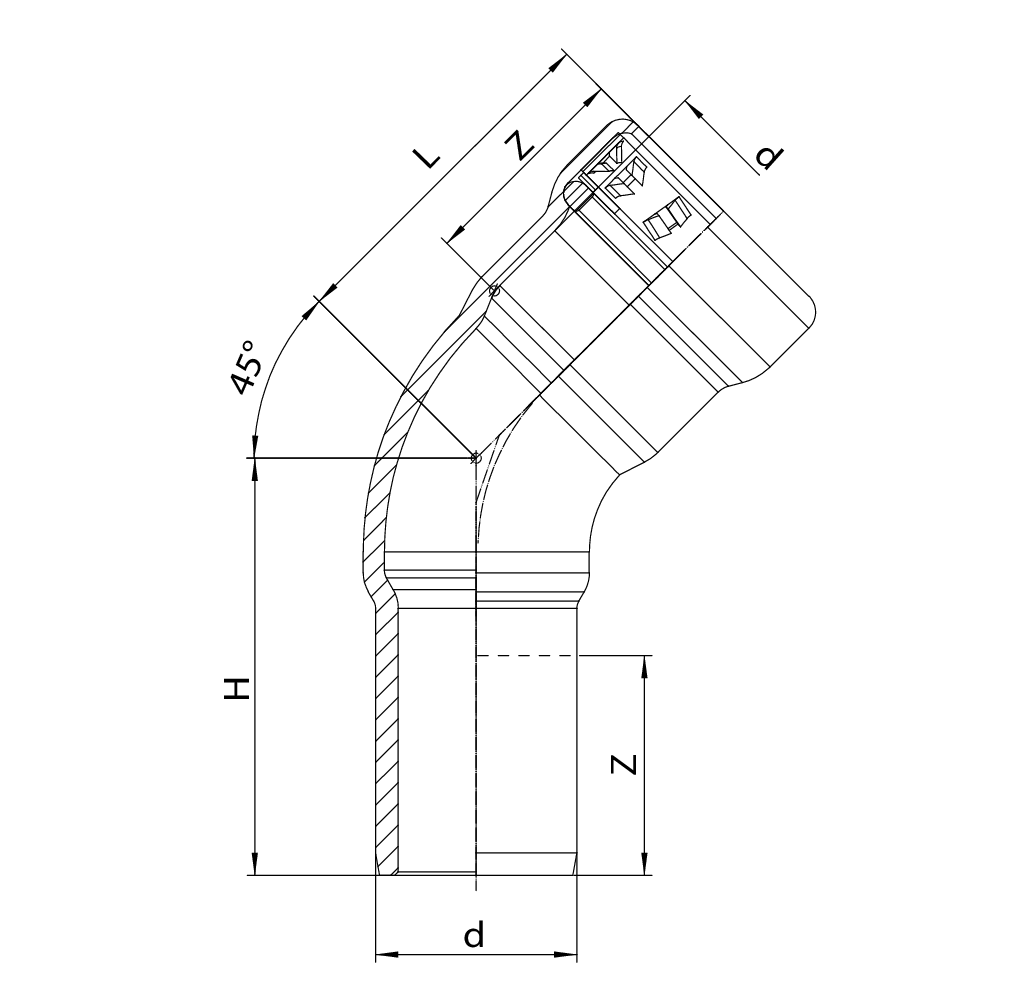

SIZE	L	H	Z
1/2''	1.67	1.99	1.06
3/4''	1.83	2.19	1.14
1''	2.20	2.52	1.34
1 1/4''	2.78	2.99	1.81
1 1/2''	2.99	3.07	1.89
2''	3.29	3.58	1.97
