A Bonomi Group company

BONOMI PRESSMAX

5M32

Made in Italy

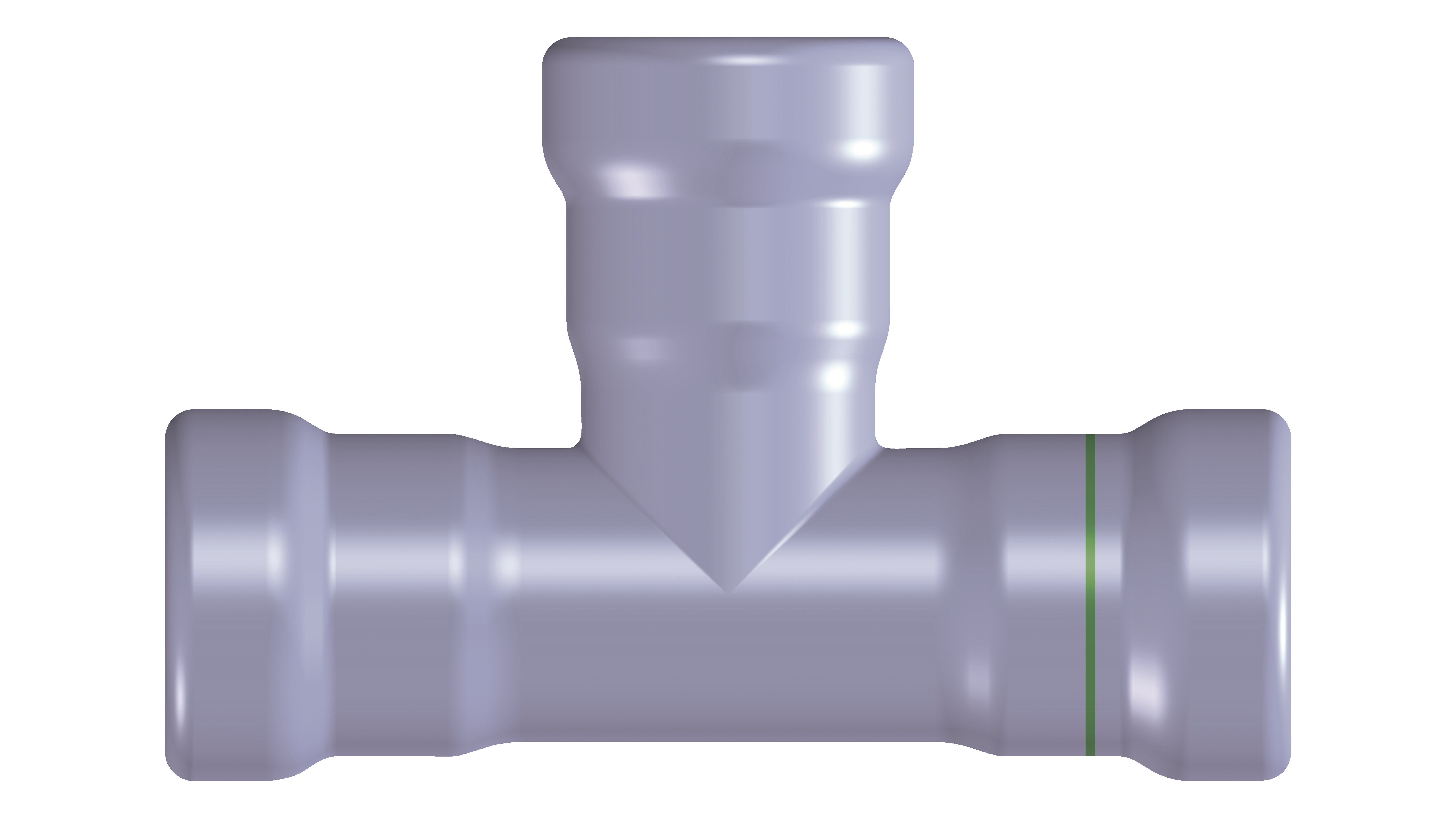

Carbon steel P/P/P tee from 1/2" to 2".

Technical specifications

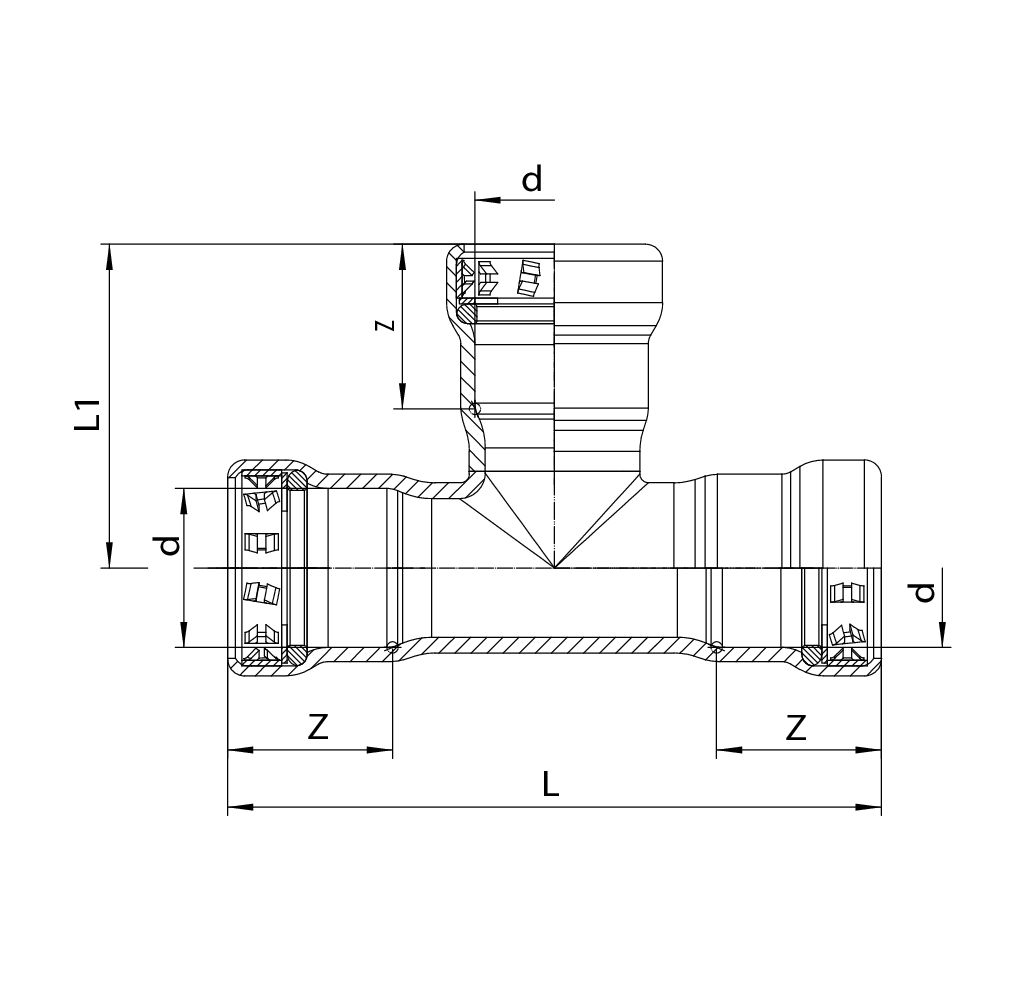

SIZE	L	Z	L1
1/2''	4.09	1.06	2.01
3/4''	4.53	1.14	2.24
1''	5.16	1.34	2.58
1 1/4''	6.46	1.81	3.21
1 1/2''	6.89	1.89	3.48
2''	7.60	1.97	3.80
