CHECK VALVES

GB15MM

PTFE COATED SS DISC

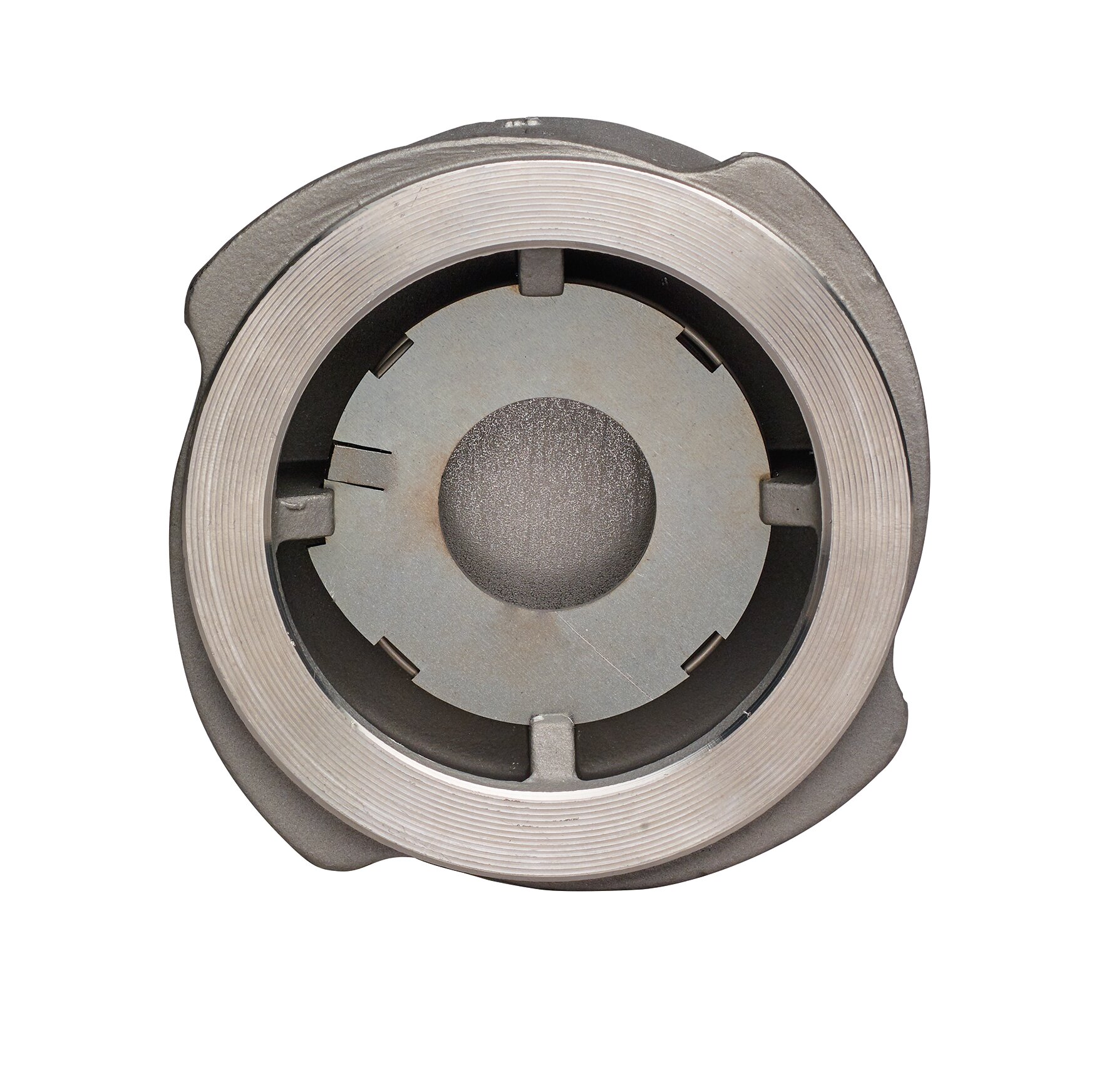

Stainless steel metal to metal seated silent check valve.
• Pressure rating 750 psi.
• Temperature range -65°F to +480°F.
• 0.35 psi cracking pressure.
• Can be intalled in any position.
• Usable as a vacuum breaker, overpressure, and bottom valve.
• Low head loss.
• Can be used with ANSI 150 or 300 flanges.
• EPDM, NBR, FKM, or PTFE seats available upon request.
GB15MM: size 1/2” to 4”.

Technical specifications

Position	Part name	Material	N.° pieces
1	BODY	A316	1
2	DISC	A240/AISI 316L	1
3	STOP RING	AISI 316L	1
4	SPRING	AISI 316	1

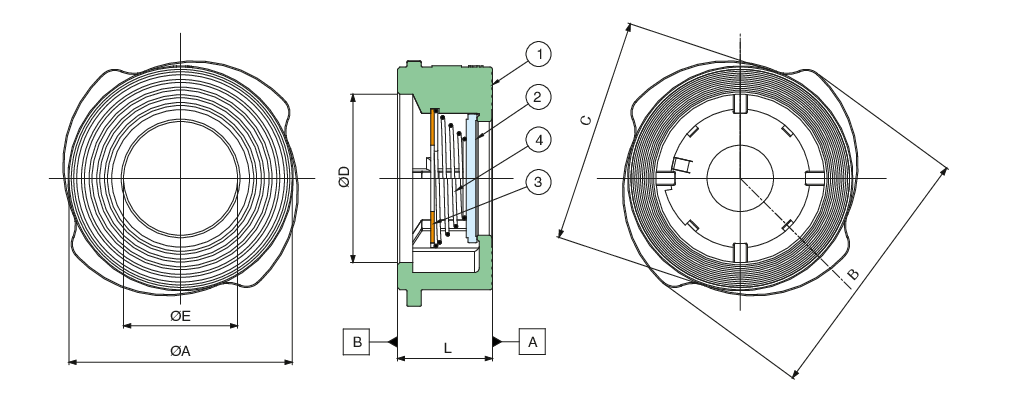

SIZE	ØA	B	C	ØD	ØE	L	PSI	Weight Lbs
1/2"	1.69	2.13	1.77	0.91	0.55	0.67	750	0.24
3/4"	1.89	2.52	2.12	1.10	0.75	0.79	750	0.40
1"	2.28	2.80	2.48	1.42	0.98	0.87	750	0.57
1 1/4"	2.68	3.19	2.83	1.97	1.22	1.10	750	0.88
1 1/2"	2.95	3.66	3.23	2.28	1.50	1.26	750	1.21
2"	3.70	4.33	3.74	2.80	1.89	1.57	750	2.20
2 1/2"	4.45	5.12	4.53	3.39	2.44	1.81	750	3.31
3"	5.08	5.87	5.16	4.13	3.03	1.97	750	4.41
4"	6.26	7.13	6.30	5.12	3.74	2.36	750	7.05
