Lead free brass ball valve with solder ends, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B16.18 connections.
• Blow-out proof stem, SLT coated LF brass ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.

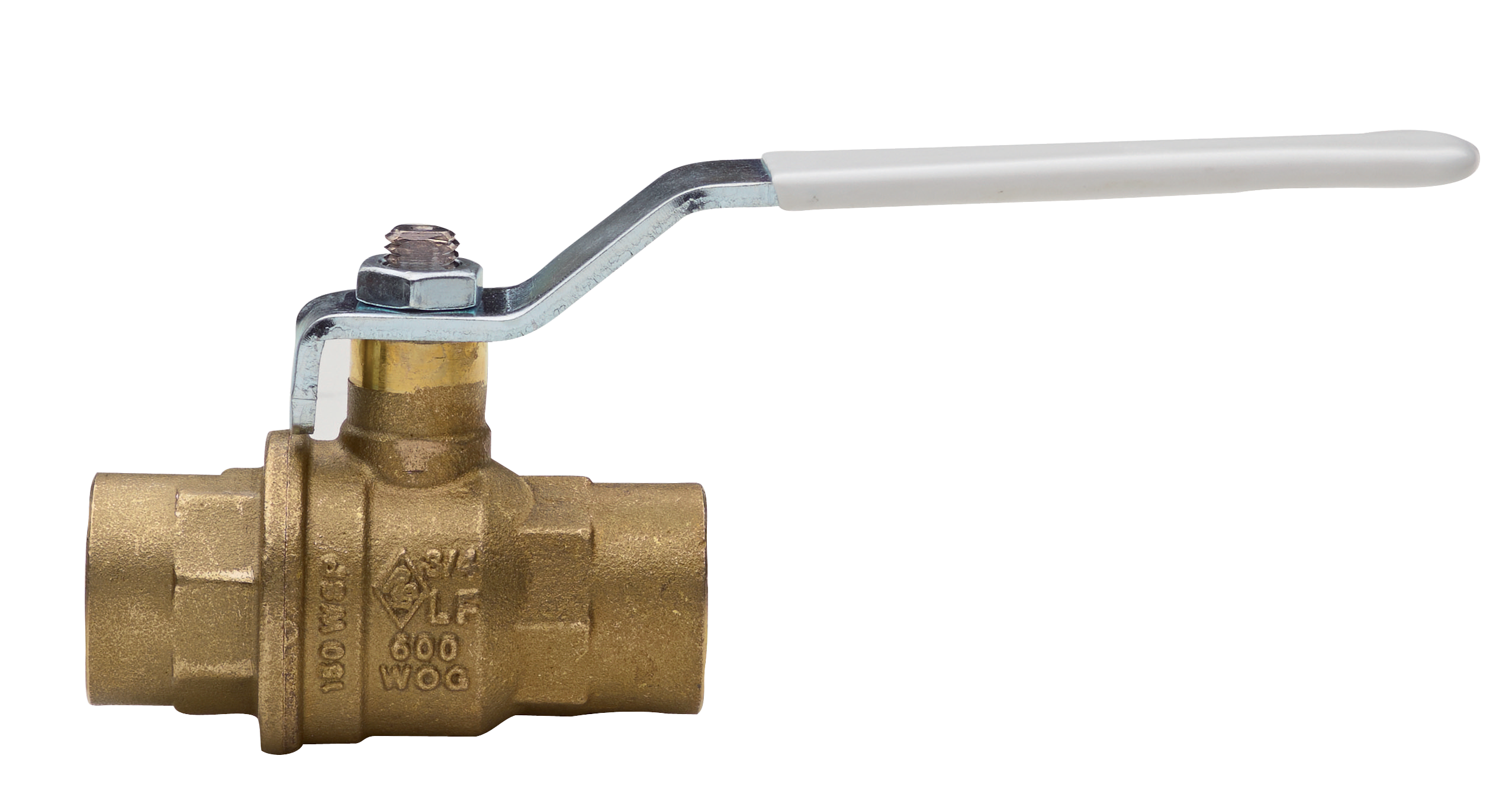

1615 LF: LEVER HANDLE - size 1/2” to 4”.
1625 LF: T-HANDLE - size 1/2” to 1”.
MEETS THE DESIGN CRITERIA OF MSS SP-110.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage under extreme duty, or low pressure applications. A secondary P.T.F.E stem seal will also assure that the valve is suitable for use up to 366°F.
* Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content not more than 0.25%. Source: California health & Safety code (116875). Vermont Act 193.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
