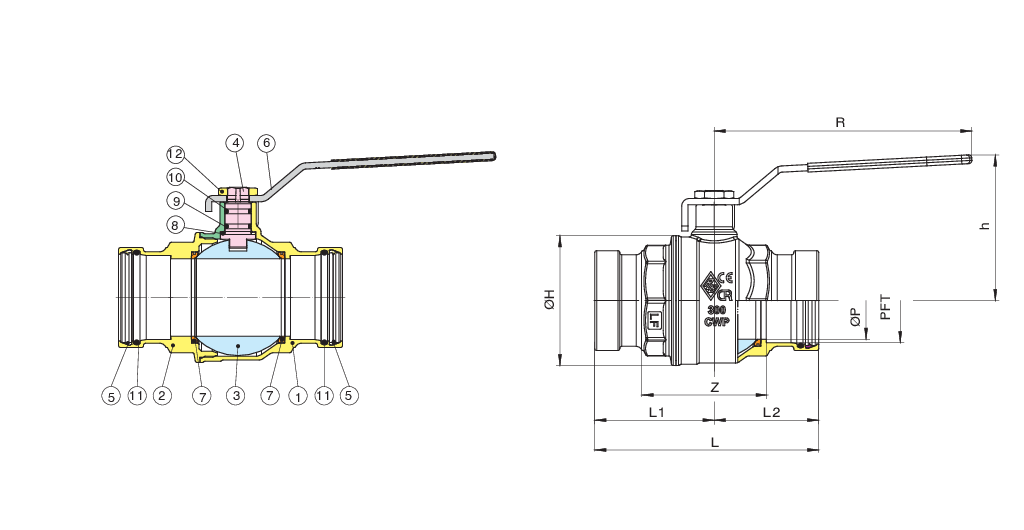

Lead free brass ball valve with XLC EURO-PRESS connections full port.
• Test pressure rating 300 psi up to 3” and 200 psi for the 4”, working pressure 200 psi for all sizes.
• Temperature range -4°F to 250°F.
• Made in lead free dezincification resistant brass (LF-DZR).
• Blow-out proof stem, stainless steel ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
1670XLC LF: size 2 1/2” to 4”.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage under extreme duty, or low pressure applications. A secondary P.T.F.E stem seal will also assure that the valve is suitable for use up to 366°F.
* Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content not more than 0.25%. Source: California health & Safety code (116875). Vermont Act 193.
