ELECTRIC ACTUATORS

8E864 LF

Electric actuator with 2 way brass ball valve direct mount (RB 250N LF).

OPERATING CONDITIONS: fluid H2O - T 68°F

Technical specifications

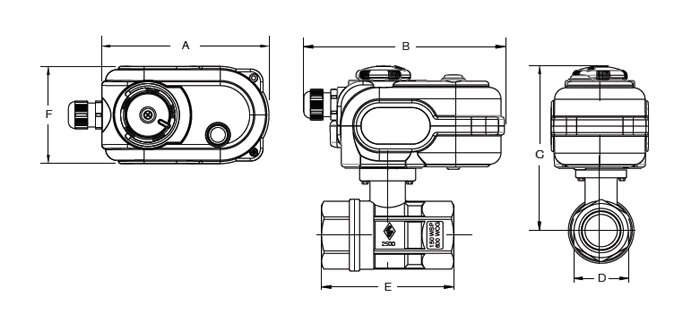

SIZE	PSI	A	B	C	D	E	F	ACT.
-	1000	5.11	6.14	5.91	1.61	3.35	2.95	VB 010
-	1000	5.11	6.14	6.23	1.97	3.66	2.95	VB 010
-	1000	5.11	6.14	5.09	1.06	2.64	2.95	VB 010
-	1000	5.11	6.14	5.29	1.26	3.00	2.95	VB 010

Available media and videos

PNEUMATIC AND ELECTRIC ACTUATED VALVE PACKAGES

CAT245100 USA RB-VP-VB
