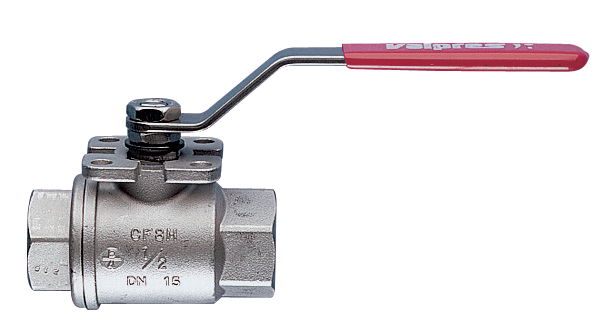

2-piece stainless steel FNPT threaded ball valve, full port.
• Pressure rating 2000 psi to 1/2”, 1500 psi 3/4” to 1”, 1000 psi 1 1/4” to 2”, 350 psi 2 1/2” to 4”, 150 psi steam.
• Temperature range -4°F to +366°F.
• Blow-out proof stem, adjustable stem packing.
• PTFE seats, packing, and thrust washer.
• ISO 5211 mounting pad and double “D” stem.
• 100% electronically tested in the open and closed position at 80 psi.
• TUV T.A. Luft approved.
• ANSI B1.20.1 connections.
700001: size 1/8” to 4”.
700001LL: WITH LOCKING HANDLE - size 1/8” to 4”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

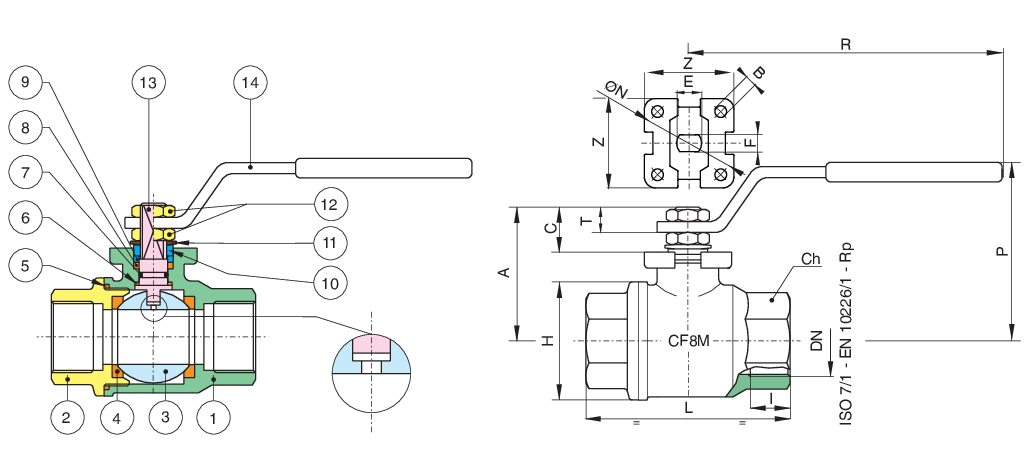

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | CF8M | 1 |
| 2 | END CONNECTION | CF8M | 1 |
| 3 | BALL | AISI 316-CF8M | 1 |
| 4 | BALL SEAT | PTFE | 2 |
| 5 | SEAT | PTFE | 1 |
| 6 | THRUST WASHER | PTFE | 1 |
| 7 | O-RING | FKM | 1 |
| 8 | STEM SEAT | PTFE | 1 |
| 9 | PACKING GLAND | INOX AISI 303 (1/8”-2”) | 1 |
| 9 | PACKING GLAND | STEEL (2 1/2”-4”) | 1 |
| 10 | END STOP | INOX AISI 430 (1/8”-2”) | 2 |
| 10 | END STOP | STEEL (2 1/2”-4”) | 1 |
| 11 | SPRING WASHER | STEEL (2 1/2”-4”) | 2 |
| 12 | NUT | INOX AISI 304 (1-8”-2”) | 1 |
| 12 | NUT | STEEL (2 1/2”-4”) | 1 |
| 13 | STEM | AISI 316 | 1 |
| 14 | HANDLE | INOX AISI 430 (1/8”-2”) | 1 |
| 14 | HANDLE | STEEL (2 1/2”-4”) | 1 |
| SIZE | I | L | H | Ch | R | P | A | C | T | E | F | ØN ISO 5211 | B | Z | Cv | psi | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 0.29 | 2.18 | 1.18 | 0.86 | 4.35 | 1.96 | 1.37 | 0.53 | 0.35 | 0.31 | 0.19 | F03 | 0.21 | 1.41 | 5.8 | 2000 | 0.67 |
| 1/4" | 0.43 | 2.18 | 1.18 | 0.86 | 4.35 | 1.96 | 1.37 | 0.53 | 0.35 | 0.31 | 0.19 | F03 | 0.21 | 1.41 | 6.36 | 2000 | 0.63 |
| 3/8" | 0.44 | 2.18 | 1.18 | 0.86 | 4.35 | 1.96 | 1.37 | 0.53 | 0.35 | 0.31 | 0.19 | F03 | 0.21 | 1.41 | 9.83 | 2000 | 0.6 |
| 1/2" | 0.59 | 2.59 | 1.41 | 1.06 | 4.35 | 2.08 | 1.49 | 0.53 | 0.35 | 0.31 | 0.19 | F03 | 0.21 | 1.41 | 22.21 | 2000 | 0.8 |
| 3/4" | 0.64 | 3.11 | 1.77 | 1.25 | 5.17 | 2.67 | 2 | 0.59 | 0.39 | 0.39 | 0.27 | F04 | 0.21 | 1.65 | 40.5 | 1500 | 1.46 |
| 1" | 0.77 | 3.66 | 2.12 | 1.61 | 6.88 | 3.11 | 2.36 | 0.76 | 0.49 | 0.47 | 0.31 | F04 | 0.21 | 1.65 | 74.63 | 1500 | 2.25 |
| 1 1/4" | 0.84 | 3.93 | 2.51 | 1.96 | 6.88 | 3.28 | 2.53 | 0.76 | 0.49 | 0.47 | 0.31 | F04 | 0.21 | 1.65 | 120.1 | 1000 | 3.09 |
| 1 1/2" | 0.84 | 4.33 | 3.14 | 2.16 | 9.84 | 3.93 | 3.11 | 0.94 | 0.64 | 0.62 | 0.39 | F05 | 0.25 | 1.96 | 201.32 | 1000 | 5.29 |
| 2" | 1.01 | 5.15 | 3.74 | 2.75 | 9.84 | 4.21 | 3.38 | 0.94 | 0.64 | 0.62 | 0.39 | F05 | 0.25 | 1.96 | 348.6 | 1000 | 7.91 |
| 2 1/2" | 1.18 | 6.25 | 4.8 | 3.54 | 12.65 | 5 | 4.09 | 1.12 | 0.72 | 0.78 | 0.55 | F07 | M8 | 2.51 | 631.37 | 350 | 15.45 |
| 3" | 1.31 | 7.28 | 5.66 | 4.13 | 12.65 | 5.41 | 4.48 | 1.1 | 0.7 | 0.78 | 0.55 | F07 | M8 | 2.51 | 1009.48 | 350 | 23.34 |
| 4" | 1.54 | 8.74 | 6.96 | 5.11 | 15.01 | 6.16 | 5.39 | 1.35 | 0.86 | 0.94 | 0.7 | F10 | M10 | 3.62 | 1577.34 | 350 | 41.41 |
