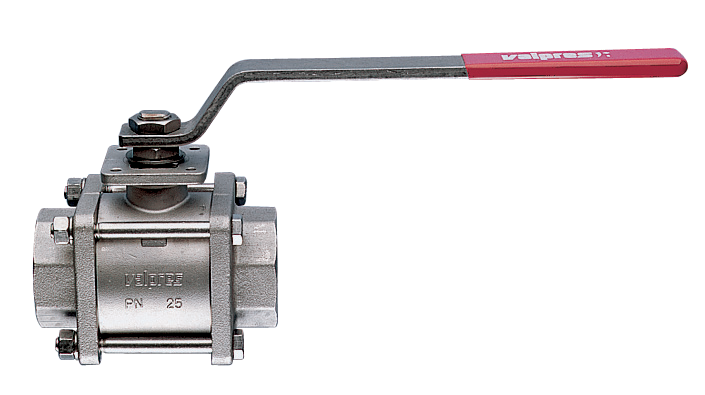

3-piece stainless steel 250 WSP, FNPT threaded V-ball valve, 30-60, 60, 90 degrees V-ports.
• Temperature range -4°F to +406°F.
• Blow-out proof stem, Antistatic Device.
• ISO 5211 mounting pad with double “D” stem.
• 100% tested.
• TUV T.A. Luft approved.
• Working steam pressure 250 psi.
• 25% carbon filled PTFE ball seats; thermal relief hole in the ball.
710190V36 - 710190V6 - 710190V9: size 1/2” to 4”.
710061V36 - 710061V6 - 710061V9: SOCKET WELD - size 1/2” to 4”.
250 PSI STEAM
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

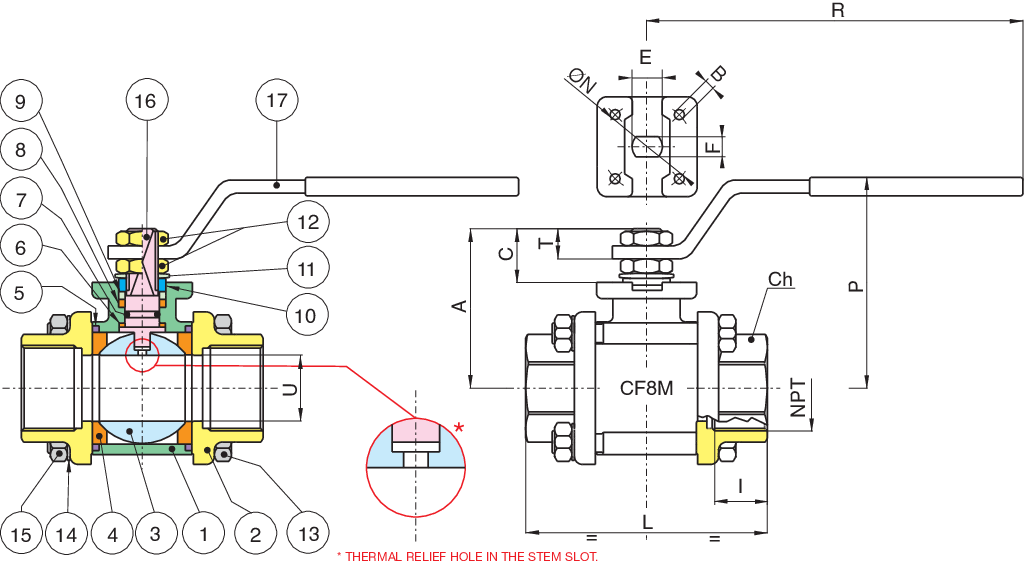

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | CF8M | 1 |
| 2 | END CONNECTION | CF8M | 2 |
| 3 | BALL | AISI 316 | 1 |
| 4 | BALL SEAT | RPTFE | 2 |
| 5 | O-RING | FKM (Viton) | 2 |
| 6 | STEM SEAL | RPTFE | 1 |
| 7 | O-RING | FKM (Viton) | 1 |
| 8 | STEM SEAL | RPTFE | 1 |
| 9 | PACKING GLAND | AISI 303 (1/4”-2”) | 1 |
| 9 | PACKING GLAND | STEEL (2 1/2”-4”) | 1 |
| 10 | END STOP | AISI 430 (1/4''-2'') | 2 |
| 10 | END STOP | STEEL (2 1/2”-4”) | 1 |
| 11 | SPRING WASHER | STEEL (2 1/2”-4”) | 2 |
| 12 | NUT | AISI 304 (1/4''-2'') | 2 |
| 12 | NUT | STEEL (2 1/2”-4”) | 2 |
| 13 | BOLT | AISI 304 (1/4''-2'') | 4 |
| 13 | BOLT | STEEL (2 1/2”-4”) | 6 |
| 14 | WASHER | AISI 304 (1/4''-2'') | 4 |
| 14 | WASHER | STEEL (2 1/2”-4”) | 6 |
| 15 | NUT | AISI 304 (1/4''-2'') | 4 |
| 15 | NUT | STEEL (2 1/2”-4”) | 6 |
| 16 | STEM | AISI 316 | 1 |
| 17 | HANDLE | AISI 430 (1/4''-2'') | 1 |
| 17 | HANDLE | STEEL (2 1/2”-4”) | 1 |
| SIZE | U | I | L | Ch | R | P | A | C | T | E | F | ISO 5211 ØN | B | WOG | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.59 | 0.59 | 2.55 | 1.06 | 5.17 | 2.51 | 1.85 | 0.59 | 0.39 | 0.39 | 0.27 | 1.41 (F03) | 0.23 | 1000 | 0.88 |
| 3/4" | 0.78 | 0.64 | 2.99 | 1.25 | 5.17 | 2.67 | 2.02 | 0.59 | 0.39 | 0.39 | 0.27 | 1.65 (F04) | 0.21 | 600 | 1.32 |
| 1" | 0.98 | 0.75 | 3.62 | 1.61 | 6.87 | 3.09 | 2.36 | 0.76 | 0.49 | 0.47 | 0.31 | 1.65 (F04) | 0.23 | 600 | 2.42 |
| 1 1/4" | 1.25 | 0.84 | 4.19 | 1.96 | 6.87 | 3.28 | 2.53 | 0.76 | 0.49 | 0.47 | 0.31 | 1.65 (F04) | 0.21 | 365 | 3.36 |
| 1 1/2" | 1.49 | 0.84 | 4.56 | 2.16 | 9.86 | 3.93 | 3.11 | 0.94 | 0.64 | 0.62 | 0.39 | 1.96 (F05) | 0.25 | 365 | 4.61 |
| 2" | 1.96 | 1.01 | 5.35 | 2.75 | 9.86 | 4.21 | 3.38 | 0.94 | 0.64 | 0.62 | 0.39 | 1.96 (F05) | 0.25 | 365 | 7.03 |
| 3" | 3.15 | 1.31 | 7.08 | 4.13 | 12.65 | 5.41 | 4.48 | 1.10 | 0.70 | 0.78 | 0.55 | 2.75 (F07) | M8 | 250 | 29.45 |
| 4" | 3.93 | 1.54 | 8.54 | 5.11 | 15.01 | 6.16 | 5.39 | 1.35 | 0.86 | 0.94 | 0.70 | 4.01 (F10) | M10 | 250 | 46.79 |
